Home > Products > Aluminum Extrusion > Specification
Specification

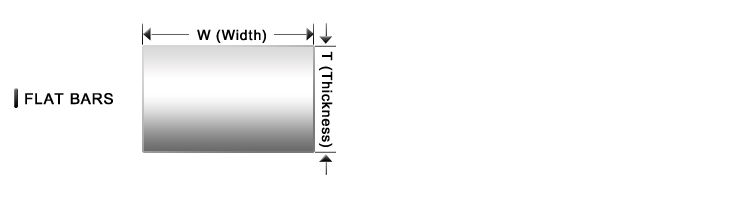

6061 Rods Specification Round Tubes Specification Flat Bars Specification Square Bars Specification

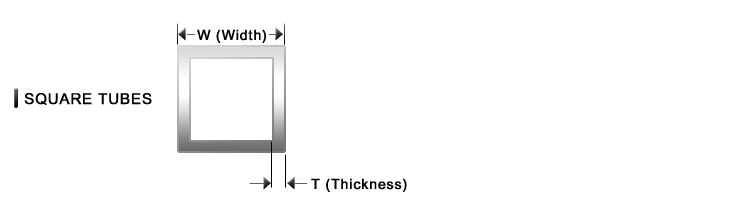

Square Tubes
Specification

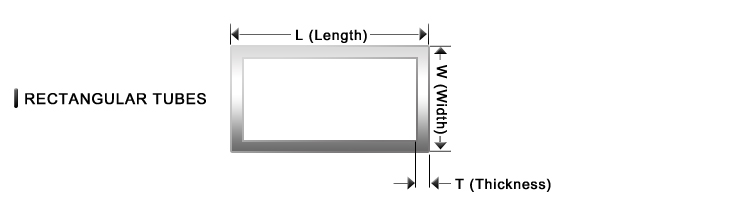

Rectangular Tubes
Specification

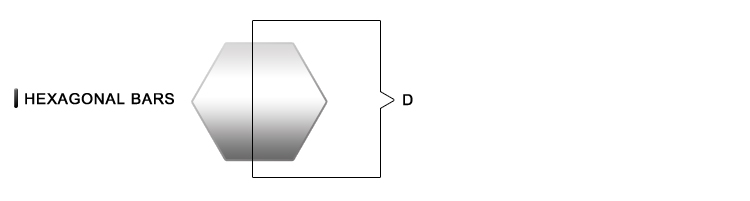

Hexagonal Bars
Specification

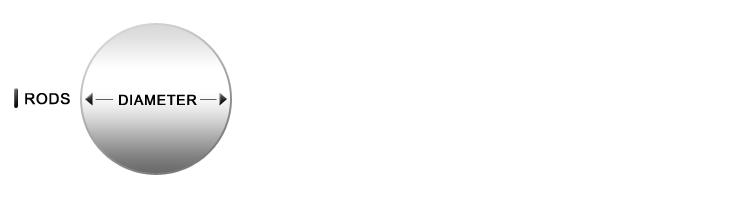

6061 Rods Specification
NO RODS SPECIFICATION WEIGHT
(KG/M)
REMARK NO RODS SPECIFICATION WEIGHT
(KG/M)
REMARK
1 FT001 3.3 0.024   44 FT032 11.8 0.303
2 FT002 3.4 0.025   45 FT033 11.9 0.308
3 FT003 4 0.035   46 FT034 12.1 0.318
4 FT004 4.3 0.04   47 K37100 12.2 0.321
5 FT005 4.5 0.044   48 FT035 12.3 0.329
6 FT006 4.6 0.046   49 FT036 12.6 0.345
7 FT008 5.1 0.056   50 K3760 13 0.365
8 FT009 5.5 0.066   51 FT037 13.1 0.373
9 FT010 5.6 0.068   52 FT038 13.2 0.379
10 FT011 5.8 0.073   53 FT039 13.3 0.385
11 CE22713 6 0.076   54 FT040 13.4 0.391
12 K3794 6.25 0.084   55 HL0144 13.5 0.396
13 FT012 6.4 0.089   56 FT041 13.7 0.408
14 K3743 6.55 0.093   57 FT042 13.8 0.414
15 FT013 6.6 0.095   58 FT043 13.9 0.42
16 FT007 6.8 0.101   59 HL0145 14 0.426
17 FT014 6.9 0.104   60 K3762 14.2 0.436
18 FT015 7.2 0.113   61 FT044 14.3 0.445
19 FT016 7.3 0.116   62 FT045 14.5 0.457
20 FT017 7.4 0.119   63 HL0146 14.7 0.47
21 FT018 7.5 0.122   64 FT046 14.8 0.476
22 KM0917 7.8 0.131   65 FT047 14.9 0.483
23 K3723 8.2 0.145   66 K3742 15 0.486
24 K3708 8.3 0.149   67 K3761 15.2 0.499
25 FT019 8.5 0.157   68 FT048 15.4 0.516
26 FT020 8.9 0.172   69 FT049 15.5 0.523
27 K3758 9 0.175   70 FT050 15.6 0.529
28 FT021 9.1 0.18   71 FT051 15.8 0.543
29 FT022 9.2 0.184   72 C9124 15.9 0.54
30 FT023 9.3 0.188   73 HL0147 16.2 0.571
31 FT024 9.4 0.192   74 K3796 16.3 0.574
32 FT025 9.6 0.2   75 FT052 16.5 0.592
33 FT026 9.9 0.213   76 FT053 16.7 0.607
34 K3799 10.2 0.225   77 FT054 16.9 0.621
35 HL0141 10.3 0.23   78 K3754 17 0.624
36 FT027 10.5 0.239   79 FT055 17.1 0.636
37 FT028 10.6 0.244   80 FT056 17.2 0.643
38 FT029 10.7 0.249   81 FT057 17.3 0.651
39 HL0142 11 0.263   82 FT058 17.5 0.666
40 FT030 11.1 0.268   83 FT059 17.9 0.697
41 K3795 11.3 0.276   84 K3709 18 0.7
42 HL0143 11.5 0.288   85 HL0148 18.2 0.72
43 FT031 11.6 0.293   86 K3746 18.35 0.727
NO RODS SPECIFICATION WEIGHT
(KG/M)
REMARK NO RODS SPECIFICATION WEIGHT
(KG/M)
REMARK
87 HL0149 18.4 0.736   130 K3771 26.6 1.528
88 FT060 18.5 0.744   131 K3736 27 1.575
89 FT061 18.6 0.752   132 FT086 27.2 1.609
90 FT062 18.7 0.761   133 K3768 27.5 1.633
91 K3766 18.9 0.772   134 K3740 28 1.693
92 FT063 19.1 0.793   135 FT087 28.1 1.717
93 K3741 19.2 0.796   136 FT088 28.3 1.742
94 FT064 19.3 0.81   137 FT089 28.8 1.804
95 FT065 19.4 0.819   138 K3798 28.9 1.804
96 FT066 19.5 0.827   139 FT090 29.1 1.842
97 K3764 20.1 0.873   140 FT091 29.4 1.879
98 HL0150 20.2 0.887   141 K3783 29.5 1.88
99 FT067 20.3 0.855   142 FT092 29.7 1.919
100 FT068 20.4 0.905   143 K3706 30 1.958
101 FT069 20.8 0.941   144 FT093 30.2 1.984
102 FT070 20.9 0.95   145 FT094 30.3 1.997
103 K3756 21 0.952   146 K3724 30.5 2.009
104 HL0151 21.5 1.005   147 FT095 30.8 2.063
105 FT071 21.6 1.015   148 K3738 31 2.076
106 K3749 22 1.045   149 FT096 31.2 2.117
107 HL0152 22.3 1.082   150 FT097 31.3 2.131
108 K3747 22.35 1.079   151 K3786 31.5 2.143
109 FT072 22.5 1.101   152 FT098 31.6 2.172
110 FT073 22.8 1.131   153 K3735 32.2 2.239
111 K3719 23 1.143   154 FT099 32.8 2.34
112 K3797 23.2 1.163   155 K3779 33.5 2.424
113 FT074 23.4 1.191   156 K3730 34 2.497
114 FT075 23.6 1.211   157 FT100 34.4 2.574
115 K3791 23.8 1.223   158 K3788 34.5 2.571
116 FT076 23.9 1.242   159 FT101 35.4 2.726
117 K3781 24 1.244   160 FT102 35.5 2.741
118 FT077 24.3 1.284   161 FT103 35.9 2.803
119 FT078 24.4 1.295   162 FT104 36.1 2.834
120 FT079 24.5 1.306   163 K3727 37 2.957
121 K3718 25 1.35   164 HL0153 37.6 3.075
122 FT080 25.1 1.37   165 FT105 37.8 3.108
123 K3705 25.6 1.415   166 FT106 38.1 3.157
124 FT081 25.9 1.459   167 FT107 38.2 3.174
125 FT082 26 1.47   168 HL0154 38.5 3.224
126 FT083 26.1 1.482   169 FT108 38.8 3.274
127 K3731 26.2 1.46   170 K3782 39 3.285
128 FT084 26.3 1.504   171 K3767 40 3.456
129 FT085 26.4 1.516   172 FT109 40.2 3.515
NO RODS SPECIFICATION WEIGHT
(KG/M)
REMARK NO RODS SPECIFICATION WEIGHT
(KG/M)
REMARK
173 FT110 40.4 3.55   216 K3772 60.3 7.853
174 HL0155 40.5 3.568   217 PWT0620 62 8.36
175 HL0156 41 3.656   218 K3776 63 8.572
176 FT111 42 3.837   219 K3734 64 8.847
177 FT112 41.4 3.728   220 CR2193 65 9.026
178 FT113 41.7 3.782   221 K3737 65.2 9.182
179 FT114 42.5 3.929   222 PWT0654 65.4 9.302
180 FT115 42.7 3.966   223 HL0158 65.6 9.36
181 K37111 43 3.994   224 K37117 66 9.408
182 FT116 43.1 4.04   225 HL0159 70 10.658
183 FT117 43.8 4.173   226 PWT070 70.3 10.749
184 K3785 44 4.181   227 PWT0710 71 10.964
185 FT118 45.2 4.444   228 HL0161 72 11.275
186 PWT0454 45.4 4.483   229 K3770 72.7 11.415
187 K37105 46 4.57   230 PWT073 73 11.59
188 K3774 46.5 4.67   231 HL0163 73.5 11.75
189 FT119 46.8 4.764   232 PWT074 74 11.91
190 FT120 46.9 4.784   233 HL0164 74.8 12.169
191 FT121 47.7 4.989   234 K37112 75 12.149
192 K37116 48 4.976   235 K3777 76 12.475
193 HL0157 49 5.222   236 K3720 77 12.806
194 K3745 49.3 5.249   237 PW945A 79.2 13.643
195 K3726 50 5.4   238 K37110 80 13.823
196 K3713 50.8 5.574   239 PWT0804 80.4 14.059
197 FT122 51.3 5.724   240 HL0165 80.5 14.095
198 K37113 51.4 5.706   241 K3715 82 14.523
199 FT123 51.5 5.769   242 HL0166 82.5 14.803
200 K3790 52 5.84   243 PWT0834 83.4 15.128
201 K3793 53 6.067   244 K3728 83.8 15.167
202 PWT535 53.5 6.225   245 PWT0854 85.4 15.862
203 K3778 54.5 6.415   246 HL0167 87.5 16.652
204 K37108 55 6.534   247 PWT088 88.9 17.189
205 PWT0554 55.4 6.675   248 PWT089 89.9 17.578
206 FT124 55.5 6.7   249 PWT0904 90.4 17.774
207 K37101 55.7 6.701   250 K3725 91 17.886
208 K37115 56 6.773   251 PW945 94.5 19.423
209 FT125 56.8 7.017   252 PWT0102 102 22.628
210 PWT0575 57.5 7.191   253 PWT110 110 26.317
211 K3784 57.6 7.166
212 FT126 58.5 7.443
213 FT127 59 7.571
214 K37103 60 7.775
215 FT128 60.2 7.882
NO RODS SPECIFICATION WEIGHT
(KG/M)
REMARK NO RODS SPECIFICATION WEIGHT
(KG/M)
REMARK
1 Billet 101.6 22.3   1 Dia.178 178 3000mm Imports
2 Billet 114.3 28.22   2 Dia.190.5 190.5 3000mm Imports
3 Billet 127 34.84   3 Dia.203 203 3000mm Imports
4 Billet 139.7 42.15   4 Dia.210 210 3000mm Imports
5 Billet 152.4 50.16   5 Dia.215.9 215.9 3000mm Imports
6 Billet + Turning 165 59.21   6 Dia.230 230 3000mm Imports
7 Billet 178 68.28   7 Dia.245 245 3000mm Imports
8 Billet + Turning 190 78.52   8 Dia.255 255 3000mm Imports
9 Billet 203 89.18   9 Dia.270 270 3000mm Imports
10 Billet + Turning 217 102   10 Dia.280 280 3000mm Imports
11 Billet 228.6 112.87   11 Dia.304.8 304.8 3000mm Imports
12 Billet + Turning 242 127.4   12 Dia.318 318 3000mm Imports
13 Billet 254 140.32   13 Dia.330 330 3000mm Imports
          14 Dia.355.6 355.6 3000mm Imports
          15 Dia.381 381 3000mm Imports
          16 Dia.406.4 406.4 3000mm Imports
※ABOVE IS OUR REGULAR STOCK AND OTHERS IS BY YOUR REQUEST.

In addition to 6061 series, we also can supply:
Alloy:2011, 2014, 2024, 2017, 7075
Temper:F, T3, T4, T5, T6
Others:skin pass drawing and forging materials

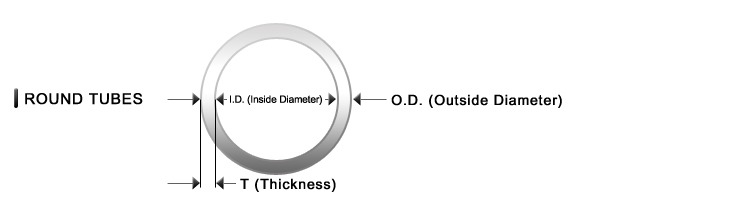

Round Tubes Specification
NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M) NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M)
1 PW5168 7.4 5 0.069 46 PW716A 16 9.1 0.375
2 PW085009 8 5.2 0.08 47 PW14702 16 10 0.338
3 PW023009 9 7 0.069 48 K36416 16 11 0.292
4 PW097024 9.5 5.2 0.133 49 K36433 16 12.2 0.231
5 FTD001 9.5 7 0.089 50 FTD008 16 13.5 0.159
6 CE22814 9.525 7.525 0.073 51 PW922 16 13.6 0.153
7 PWD010 10 4.3 0.176 52 K36117 16.1 5 0.506
8 LF1016 10 4.5 0.173 53 CC0161 16.1 9.1 0.376
9 PW85012 10 8 0.077 54 LF1016 16.1 9.1 0.382
10 PW75003 10.1 8.1 0.078 55 K36310 16.1 12.95 0.198
11 K36432 10.5 6.5 0.147 56 FTD009 16.3 10 0.359
12 PWD0110 11 4 0.228 57 PW382001 16.5 12.5 0.252
13 FTD002 11 8.15 0.118 58 C7542 16.5 14.7 0.121
14 FTD003 11.28 9.5 0.079 59 K36455 17 7.6 0.499
15 K36488 11.7 5.2 0.237 60 PW992 17 12.8 0.271
16 PW14703 12 8 0.173 61 PW939 17 15.4 0.112
17 CC0120A 12 8.1 0.167 62 PW023001 17.2 15.5 0.12
18 LFM040 12.03 6 0.238 63 FTD010 17.4 14.4 0.206
19 LFM061 12.5 7.5 0.215 64 K36419 17.5 12.1 0.345
20 PW912 12.5 9.2 0.155 65 K36430 17.5 14.3 0.22
21 PW915 12.7 3.2 0.327 66 PWD0175 17.5 15.5 0.143
22 PWD0127 12.7 6.4 0.26 67 PWD0178 17.8 11 0.425
23 K36297 12.7 8 0.21 68 PWDA178 17.8 12.2 0.365
24 K36369 12.7 8.7 0.185 69 PW091022 17.8 16.3 0.111
25 PW14704 12.7 9.6 0.149 70 PW023018 18 16.3 0.136
26 PW023013 12.7 10.1 0.128 71 PW060 18.1 14.6 0.248
27 CE22815 12.7 10.7 0.1 72 PWD0188 18.8 16.7 0.161
28 PW911 12.9 7.9 0.226 73 PW023005A 18.8 17.2 0.124
29 K36223 13.1 10 0.155 74 K36139 19 5.2 0.721
30 K36444 13.2 11.2 0.105 75 PW085019 19 6.9 0.681
31 K36425 13.5 11 0.132 76 LFM061A 19 7.5 0.65
32 FTD004 13.95 9.12 0.242 77 K36397 19 8.6 0.62
33 K36442 14 5 0.369 78 LFM105 19 15.4 0.264
34 FTD005 14 6 0.347 79 FTD011 19 16.4 0.201
35 PW714 14 9.1 0.245 80 PW8022 19 16.6 0.185
36 K36124 14 9.5 0.228 81 PW023005 19 17.3 0.134
37 PW011014A 14.25 12.65 0.092 82 PW023005C 19 17.5 0.119
38 PW023015 14.3 12.2 0.12 83 K36168 19.05 14.05 0.357
39 FTD006 14.35 4.925 0.21 84 PW2011905 19.05 14.83 0.31
40 PW011014 14.35 12.75 0.093 85 K36116 19.05 15.45 0.268
41 PWD0151 15 11.1 0.221 86 CE22811T 19.05 16.05 0.225
42 FTD007 15.6 10.5 0.289 87 K36171 19.05 16.65 0.185
43 PW58012 15.8 13.8 0.127 88 CE22811 19.05 17.05 0.154
44 PW023016A 15.8 14.4 0.09 89 PW931 19.1 15.1 0.297
45 PW025009 16 7.4 0.436 90 K36120 19.1 15.9 0.242
NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M) NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M)
91 FTD012 19.1 16.6 0.193 136 K36209 22.2 17.75 0.384
92 K36473 19.1 17.5 0.126 137 K36199 22.2 18.15 0.353
93 PW9817 19.2 15.8 0.258 138 PW100102A 22.2 18.6 0.318
94 PW023002 19.2 17.5 0.134 139 LFM106 22.2 18.6 0.313
95 K36175 19.3 5.3 0.744 140 K36254 22.2 19 0.285
96 PW023020 19.9 17.7 0.179 141 K36121 22.2 19.2 0.268
97 K36289 20 12.7 0.516 142 PWDA222 22.2 19.6 0.235
98 K36438 20 13 0.499 143 K3657 22.2 19.8 0.218
99 PWD0200 20 13.1 0.496 144 K36149 22.2 20.2 0.183
100 K36164 20 14.9 0.384 145 PW2012223 22.23 18.21 0.35
101 CC0200 20 15.5 0.341 146 FTD015 22.25 6.1 0.995
102 PW080204 20 17 0.241 147 PW080112 22.25 17.85 0.377
103 CR0299 20 17.6 0.193 148 K36422 22.3 18 0.374
104 PW091021 20 18.5 0.125 149 K36268 22.35 12.15 0.76
105 K36435 20.1 11 0.611 150 K36273 22.35 13.15 0.705
106 K36244 20.3 17.9 0.198 151 K36504 22.35 13.35 0.694
107 FTD013 20.5 18 0.209 152 LFM036 22.5 19 0.325
108 K36366 20.65 17 0.297 153 PW920 22.5 19.7 0.256
109 K36443 20.7 12.7 0.577 154 K36441 22.8 19.1 0.335
110 K36198 20.7 18.6 0.178 155 LFA10 22.5 20.8 0.229
111 K36181 21 16.1 0.393 156 K36150 22.8 20.8 0.188
112 K36333 21 17 0.328 157 PW025002 23 5.3 1.088
113 PWD0212 21.2 14.8 0.501 158 FTD016 23 10.1 0.928
114 PW941 21.5 15.4 0.489 159 PW943 23 17 0.521
115 PW080108 21.9 12.7 0.692 160 K36182 23 21.4 0.153
116 K36463 22 6.3 0.96 161 K36162 23.5 17.9 0.501
117 FTD014 22 8.4 0.899 162 K15604 23.5 19.2 0.397
118 K36300 22 9 0.87 163 K36173 23.5 20.6 0.276
119 K36298 22 12.7 0.697 164 K3601 23.5 20.8 0.258
120 K36449 22 16 0.492 165 K36387 23.65 20.8 0.274
121 K36208 22 17 0.421 166 PW080101 23.7 20.1 0.342
122 LFM045 22 17.2 0.403 167 PWD237 23.7 21.8 0.187
123 PW946 22 18 0.347 168 PW143005 23.8 18.6 0.474
124 C989 22 19 0.263 169 K36107 23.8 18.8 0.46
125 PW80201A 22 19.6 0.216 170 K36353 23.8 21.8 0.197
126 K36123 22 19.2 0.249 171 K36108 23.9 20.7 0.308
127 PW14706 22.1 16.9 0.44 172 K36490 24 9.5 1.049
128 PW099008 22.1 17.3 0.411 173 K36292 24 11 0.983
129 K36165 22.15 16.95 0.439 174 K36284 24 12.7 0.896
130 K36237 22.15 18 0.36 175 PWD0240 24 15.5 0.729
131 K3606 22.17 17.37 0.41 176 FTD017 24 18.5 0.508
132 PW062 22.2 12 0.757 177 K36348 24 18.6 0.497
133 PWD0222 22.2 14.2 0.632 178 C8622 24 21.4 0.252
134 PW080100 22.2 17 0.442 179 K36109 24.2 20.9 0.321
135 CC0222 22.2 17.5 0.398 180 K36480 24.25 21.85 0.239
NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M) NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M)
181 K36228 24.3 21.7 0.258 226 K36274 25.5 13.5 1.011
182 PWDE254 24.4 19 0.509 227 K36475 25.5 14.1 0.975
183 PW264006 24.5 8.6 1.144 228 K3659 25.5 16.4 0.824
184 PW242001 24.6 22.4 0.224 229 K3612 25.5 21.28 0.426
185 K36426 25 8.7 1.186 230 K3660C 25.5 21.7 0.387
186 PW029025 25 9.7 1.154 231 PW725 25.6 12.7 1.074
187 K3658 25 10.4 1.116 232 K36472 25.7 6 1.349
188 K36372 25 10.8 1.098 233 FTD018 25.7 17.45 0.773
189 K36501 25 12.2 1.028 234 K36166 25.95 21.15 0.488
190 K36496 25 15 0.864 235 K3623 25.95 21.55 0.451
191 K36253 25 20 0.486 236 K36272 25.95 21.95 0.414
192 PW080205 25 22 0.306 237 K36277 26 5.25 1.401
193 K36202 25 23.4 0.167 238 K36367 26 10.4 1.226
194 PW123019 25.2 5.6 1.312 239 K36500 26 12.15 1.141
195 PW090014 25.2 12.45 1.043 240 K36236 26 17 0.836
196 PW090016 25.2 13.04 0.369 241 K36233 26 18 0.76
197 CMIH0988 25.2 19 0.585 242 PW726 26 19.2 0.668
198 PW080011 25.25 20.85 0.435 243 PWD0260 26 22 0.417
199 PW14707 25.3 19.3 0.581 244 K3650 26 23 0.317
200 PW147013 25.3 20.5 0.477 245 K36222 26.07 19.43 0.653
201 CC0253 25.32 20.9 0.436 246 PW080142 26.4 22.5 0.413
202 K36238 25.35 20.9 0.445 247 PW950 26.4 23.2 0.344
203 PWDA254 25.4 12 1.089 248 PWD0262 26.5 20.5 0.613
204 CR2042 25.4 15.4 0.872 249 K36227 26.5 20.7 0.591
205 PW029103 25.4 16.2 0.832 250 PW023026 26.5 22 0.475
206 K3605 25.4 16.34 0.885 251 K36324 26.7 20.3 0.65
207 K36128 25.4 17.34 0.744 252 CC0269 26.9 21.14 0.591
208 PWDE254 25.4 19 0.617 253 K36113 26.9 23.2 0.401
209 K3607 25.4 19.34 0.586 254 K36235 27 9 1.401
210 K3609 25.4 20.14 0.517 255 FTD019 27 17 0.956
211 K36499 25.4 20.2 0.512 256 K36267 27 24 0.33
212 K36127 25.4 20.56 0.48 257 K36294 27 24.3 0.299
213 PW058008A 25.4 20.9 0.452 258 K36275 27 25 0.225
214 K36484 25.4 21 0.441 259 K36342 27.1 13.1 1.216
215 KL2801 25.4 21.4 0.404 260 K36502 27.3 14.8 1.137
216 K3660D 25.4 21.8 0.367 261 PW031A 27.5 16.5 1.051
217 K36136 25.4 22.1 0.339 262 K36375 27.6 18.4 0.914
218 K3603 25.4 22.2 0.329 263 PW928 27.6 21 0.696
219 K3660E 25.4 22.4 0.31 264 PWDA276 27.6 22.8 0.525
220 CE22813C 25.4 22.8 0.267 265 PW034 27.8 13 1.312
221 K36249 25.4 22.88 0.263 266 PW189028 27.8 15 1.19
222 C990 25.4 23 0.248 267 K36133 28 6.6 1.599
223 K3660 25.4 23.4 0.211 268 K36278 28 9 1.518
224 CE22813 25.4 23.4 0.208 269 FTD020 28 13 1.337
225 K36243 25.4 23.9 0.16 270 K3661 28 13.1 1.323
NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M) NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M)
271 K36309 28 16 1.14 326 CC0297 29.7 23.3 0.724
272 K36232 28 19 0.914 327 K36132 29.85 22.5 0.831
273 FTD021 28 20.5 0.79 328 K36280 30 9 1.769
274 K36240 28 22.35 0.614 329 K36279 30 11 1.683
275 K36151 28 22.8 0.571 330 PW303030 30 11.6 1.664
276 PW189023 28 23 0.554 331 PWDA300 30 13 1.589
277 C8623 28 25.4 0.297 332 PW401D030 30 13.5 1.56
278 PWTQ65 28.1 26.1 0.235 333 FTD024 30 18.5 1.212
279 K36257 28.2 8.5 1.562 334 FTD025 30 21 0.997
280 PWD0282 28.2 12.8 1.372 335 CC0284 30 23.6 0.732
281 FTD022 28.2 18.5 0.984 336 K36159 30 24 0.701
282 PW974 28.4 16.5 1.161 337 PW921 30 25 0.598
283 PWD0285 28.5 11.8 1.463 338 K36266 30 27 0.369
284 K36374 28.5 12 1.443 339 K36259 30 27.94 0.258
285 PW90005 28.5 13 1.398 340 C6923 30 28 0.248
286 K36260 28.5 15.5 1.235 341 KIB605 30 28.2 0.226
287 K36494 28.5 16.5 1.166 342 LF9525 30.15 15.3 1.458
288 LFM035 28.5 22.7 0.652 343 PW189016 30.4 25.3 0.618
289 PW264005 28.5 25.5 0.351 344 LFM043 30.4 25.5 0.585
290 K3602 28.5 26.1 0.283 345 PW099006 30.48 25.28 0.631
291 PWDA285 28.5 26.9 0.192 346 K36323 30.5 22.5 0.916
292 K36234 28.55 20.55 0.848 347 K36205 30.6 25.6 0.607
293 K36271 28.55 21.95 0.72 348 K36368 30.7 17 1.411
294 K36207 28.55 22.35 0.682 349 K36470 30.8 28.2 0.331
295 K36170 28.57 22.57 0.663 350 K36469 30.9 28.5 0.308
296 K36483 28.6 18.6 1.019 351 FTD026 31 15 1.6
297 K36451 28.6 19.5 0.945 352 K36321 31 19 1.296
298 K36497 28.6 20.2 0.885 353 K36186 31 20 1.212
299 K36486 28.6 22 0.721 354 PW731 31 24.5 0.784
300 LFM044 28.6 22.2 0.694 355 K36468 31 29 0.259
311 PWD0286 28.6 23.2 0.608 356 K36231 31.2 16 1.55
312 K36345 28.6 24.6 0.46 357 PW929 31.2 25.8 0.669
313 PW242002 28.7 26.5 0.264 358 K36155 31.3 26.5 0.599
314 K36242 28.7 27 0.205 359 CC0315 31.5 23.8 0.91
315 K36325 28.92 15.9 1.26 360 PW938 31.5 26 0.688
316 K36250 29 26 0.356 361 PW925 31.5 28.5 0.392
317 K36122 29 26.6 0.288 362 PW942 31.6 23.6 0.959
318 K36110 29.2 15.85 1.299 363 K36143 31.7 25.45 0.771
319 PWD0292 29.2 18.5 1.109 364 K36364 31.7 27.7 0.513
320 K3654 29.5 15 1.394 365 C9130 31.7 29.5 0.287
321 K15605 29.5 23.1 0.727 366 PW60012 31.75 14.6 1.728
322 K36314 29.5 23.5 0.687 367 K36194 31.75 28.95 0.367
323 CC02846 29.5 25 0.523 368 PW315002 31.75 29.75 0.266
324 FTD023 29.5 25.9 0.432 369 K36462 31.8 19.5 1.363
325 K36131 29.6 16.4 1.311 370 K36301 31.8 22 1.139
NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M) NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M)
371 CMIH0987 31.8 23.8 0.95 416 K36276 33.6 18 1.739
372 K36270 31.8 24.2 0.919 417 CC0336 33.6 28.5 0.676
373 K36482 31.8 24.8 0.856 418 KMB302 33.6 28.6 0.672
374 PW029102 31.8 25.4 0.796 419 CC0338 33.8 27 0.883
375 CC0318 31.8 25.5 0.755 420 FTD031 33.9 29.1 0.657
376 LFM034 31.8 25.5 0.809 421 PWD0340 34 14 2.087
377 K36485 31.8 25.6 0.769 422 FTD032 34.2 18 1.838
378 K36464 31.8 25.8 0.746 423 K36326 34.6 23 1.443
379 K36481 31.8 26.2 0.702 424 K36308 34.6 23.2 1.423
380 K36467 31.8 26.9 0.633 425 PW264003 34.8 32.5 0.336
381 PW90013 31.8 27.1 0.601 426 K36495 35 18 1.946
382 LFM103 31.8 27.6 0.533 427 K36158 35 26 1.186
383 K36190 31.8 27.8 0.515 428 K36411 35 27 1.071
384 K36478 31.8 28.2 0.467 429 PW029003 35 28.7 0.872
385 K36465 31.8 28.6 0.417 430 PWD0350 35 29 0.834
386 FTD027 31.8 29 0.369 431 C28620 35 29.4 0.77
387 PWD0318 31.8 29.4 0.319 432 PW814019 35 31.8 0.464
388 PWDB318 31.8 30.2 0.215 433 LFM102 35 31.8 0.457
389 PW9032 32 6.3 2.141 434 K36393 35 30.8 0.597
390 K36255 32 7 2.106 435 K3649 35 32.5 0.364
391 K36256 32 9 2.037 436 K36241 35 33 0.294
392 K15901 32 12 1.901 437 K3620 35.1 28.6 0.894
393 PWD0320 32 19.8 1.374 438 K3698 35.5 18 2.022
394 FTD028 32 25 0.867 439 K36100 35.5 22.5 1.629
395 K36410 32 26 0.752 440 K36189 35.5 28 1.029
396 K36118 32 28.8 0.42 441 K3699 35.7 12 2.442
397 K36405 32 29.5 0.332 442 PW927 36 20.6 1.895
398 K36111 32.2 16.5 1.651 443 K36148 36 29 0.983
399 K36354 32.2 25.1 0.879 444 FTD033 36 30.8 0.754
400 K36183 32.3 22.9 1.121 445 K36436 36.5 22.5 1.784
401 K36398 32.3 25.9 0.805 446 K36437 36.5 25.6 1.462
402 PW264004 32.4 17.3 1.632 447 PWD0365 36.5 27.7 1.228
403 K36154 32.5 15 1.795 448 K36293 36.5 34.1 0.366
404 K36146 32.5 29.9 0.35 449 K3647 37 21 2.004
405 FTD029 33 5.7 2.297 450 K36160 37 28.1 1.251
406 PW271010 33 11 2.104 451 K36349 37 28.5 1.202
407 PW66 33 30 0.411 452 K36265 37.5 33.1 0.671
408 CB049018 33 31.1 0.26 453 K36400 37.6 32.6 0.758
409 K36178 33 31.2 0.25 454 K36373 38 16.7 2.516
410 K36210 33.3 28 0.702 455 K36174 38 20.7 2.193
411 PWD0333 33.35 10.5 2.179 456 K36328 38 26 1.659
412 K36252 33.5 22 1.379 457 K36471 38 28 1.426
413 FTD030 33.5 28.6 0.66 458 FTA043 38 28 1.435
414 LFM081 33.5 28.6 0.65 459 K36365 38 30 1.175
415 K36332 33.55 23.85 1.203 460 PWD0380 38 31.6 0.968
NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M) NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M)
461 K3665 38 32.2 0.879 506 CR0545 41.5 30.5 1.691
462 PW080173 38 33 0.771 507 PW267002 41.5 35.5 1.004
463 KP5002 38 36 0.32 508 PW742 41.8 39.2 0.457
464 C7520 38 36 0.316 509 PW080174 42 32 1.609
465 K6337 38 36.2 0.288 510 PW06066 42 36.2 0.985
466 K36187 38.1 25 1.785 511 PW080165 42 39 0.528
467 K36450 38.1 25.4 1.742 512 K36445 42.2 28 2.153
468 LF9914 38.1 32.1 0.91 513 K36204 42.2 31 1.771
469 K36487 38.1 34 0.638 514 PW189YF 42.45 19.8 3.075
470 C7530 38.1 34.1 0.617 515 PW189YF1 42.5 14.3 3.483
471 K36339 38.1 35.3 0.444 516 PW743 42.8 39.2 0.641
472 LFM147 38.1 35.7 0.382 517 K36316 43 28 1.426
473 PW315003 38.1 35.7 0.384 518 PW271011 43 32 1.794
474 K36112 38.2 14.9 2.672 519 K36335 43 33.5 1.57
475 PW080166 38.3 35 0.526 520 FTD036 43 34 1.506
476 K36413 38.4 18 2.485 521 K36361 43 35.5 1.272
477 K36125 38.4 33.5 0.761 522 PWD0433 43.3 10.7 3.827
478 K3666 38.4 35.8 0.417 523 K36341 43.6 36 1.307
479 PW986 38.5 24.5 1.917 524 C7532-2 43.6 39 0.811
480 PWD0390 39 29 1.478 525 K36454 43.85 27.15 2.561
481 CC0390 39 30.6 1.249 526 PW189YF2 44 24 2.958
482 K36203 39.2 23 2.176 527 LFM107 44 33.65 1.716
483 F6055 39.5 30.5 1.34 528 K36456 44 38.85 0.922
484 PW944 39.5 34 0.878 529 PWD0440 44 39 0.902
485 LF100U 39.6 30 1.458 530 K36394 44 40 0.726
486 PWD0400 40 21.5 2.474 531 LFM104 44 40.4 0.65
487 K3622 40 22.9 2323 532 K36362 44.4 38.2 1.103
488 K36476 40 26 1.996 533 PW080103 44.5 28.6 2.527
489 K36312 40 29 1.639 534 K36460 44.5 31.7 2.107
490 FTA037 40 29.3 1.613 535 K36431 44.7 31.3 2.201
491 K36329 40 30.5 1.447 536 C7532 44.8 40.6 0.766
492 K36161 40 32 1.244 537 K36459 44.9 25 3.004
493 PW061 40.5 31.4 1.422 538 K36350 45 16 3.821
494 K36264 40.5 36.1 0.728 539 PW3163 45 25 3.045
495 K36217 40.5 36.2 0.712 540 K36415 45 39 1.089
496 K3637 40.6 25.7 2.134 541 PW4002 45 41 0.748
497 K36452 41 21 2.678 542 PWD0455 45.5 15.5 3.979
498 FTD035 41 24 2.403 543 K36479 45.5 22.5 3.378
499 K36414 41 29 1.814 544 K36306 45.5 39 1.186
500 PW149002 41 33.4 1.229 545 PW300004 45.6 34.6 1.918
501 K36211 41 34 1.134 546 PW601046 46 28.5 2.835
502 LFU546 41 34 1.121 547 K36305 46 38.4 1.385
503 K36288 41 39 0.346 548 K36386 46.5 41.2 1.004
504 K36338 41 39.2 0.312 549 K36363 46.5 42.5 0.769
505 K36376 41.5 15.5 3.201 550 K36377 47 14 4.348
NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M) NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M)
551 K36378 47 25 3.421 596 FTD038 53.5 35 3.56
552 C9104 47 25.4 3.341 597 PWD0540 54 38.3 3.151
553 K36346 47 27.4 3.15 598 PWDA540 54 50 0.905
554 K36358 47.1 35.4 2.085 599 K36291 54.1 48.5 1.241
555 K36218 47.2 42.8 0.855 600 K36477 54.5 27.8 4.746
556 K36446 48 40 1.521 601 K36379 55 30 4.59
557 K36334 48 42.4 1.093 602 CC0550 55 37 3.538
558 K6360 48.2 41.8 1.244 603 C7511 55 48.2 1.499
559 CC0484 48.4 41.04 1.406 604 PWDA550 55 50 1.142
560 PW300019 48.5 15.5 4.593 605 PWD55 55 51 0.922
561 K3608 48.5 43.9 0.918 606 K36434 55 51.2 0.872
562 K36188 48.6 39.3 1.766 607 PW814101 55 51.6 0.788
563 PW9049 49 23.1 4.061 608 PWD0550 55.5 41.5 2.953
564 K36156 49 31 3.11 609 CC0556 55.6 44.6 2.355
565 K36157 49 35.5 2.464 610 K36229 55.85 48.25 1.709
566 K36290 49 42.3 1.321 611 K36453 56 43.5 2.686
567 K36140 50 15.65 4.871 612 PW956 56 53.6 0.571
568 K3638 50 27.5 3.766 613 K36283 56.4 53.8 0.619
569 FTD037 50 30 3.479 614 K36331 56.5 45 2.521
570 K36322 50 31 3.324 615 K36311 56.5 49 1.709
571 K36287 50 36 2.6 616 K36380 57 24 5.773
572 PWD0500 50 37.75 2.337 617 FTA041 57 24 5.813
573 CR0546 50 44.85 1.043 618 PWD0570 57 30 5.109
574 K36383 50.8 25.4 4.18 619 K36503 57 41 3.387
575 PWD0508 50.8 35 2.948 620 FLFP003 57 53 0.936
576 PWR50.8 50.8 43.2 1.537 621 FTD039 57.1 50 1.653
577 PW352002 50.8 44.8 1.246 622 CR0492 57.3 50.8 1.501
578 LFM147 50.8 45.8 1.042 623 C7531 57.4 52.4 1.173
579 FLFP002 50.8 46.8 0.83 624 C7521 57.4 55.2 0.529
580 K36447 50.8 47.6 0.68 625 K36420 57.5 18.5 6.402
581 K36319 51 38 2.499 626 K3610 57.5 34 4.644
582 K36142 51 44.5 1.341 627 K36201 57.5 38 4.022
583 PWD0512 51.2 25.4 4.297 628 K36141 57.5 46 2.571
584 PWD0515 51.5 29.5 3.875 629 CR1615 57.5 50.1 1.701
585 K3667 51.5 39.5 2.359 630 K36213 58 37 4.309
586 K3644 51.6 22 4.705 631 K3642 58 39 3.981
587 K36491 52 17.2 5.201 632 F6140 58 45 2.85
588 PWD0503 52 25 4.522 633 K36408 58 49 2.08
589 FTD037 52 40 2.401 634 PW080257 58.5 52 2.08
590 CR2052 52 48 0.855 635 PW271012 58.8 51 1.862
591 K3618 53 33 3.715 636 K3643 59 34 5.022
592 CR1614 53 39 2.752 637 K36384 59 41 3.888
593 PW30003 53 40 2.629 638 K36230 59 50.5 2.01
594 K36302 53 48.8 0.923 639 K36215 59.1 43.5 3.457
595 K36177 53 51 0.449 640 K36391 59.6 52 1.832
NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M) NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M)
641 K36195 59.8 47.2 2.912 686 FLFP007 69.5 57 3.438
642 PW091026 59.8 56 0.956 687 CCB066002 69.5 60.5 2.499
643 K36343 60 12 7.464 688 K3641 70 24 9.339
644 CR2171 60 48 2.769 689 FTA030 70 36 7.784
645 PW323D60 60 52 1.949 690 K36245 70 36 7.784
646 C7512 60 52.8 1.735 691 K36439 70 47 5.812
647 PWDA600 60 54 1.488 692 FTD042 70 48 5.493
648 LFM145 60 55 1.243 693 CR0547 70 55.7 3.84
649 PWDB600 60 55.6 1.131 694 PW011070 70 66.4 1.067
650 CC0602 60.2 52.4 1.876 695 KM7368 71 42 7.078
651 PW462003 60.5 41 4.305 696 FTD043 72 52 5.393
652 K36417 60.5 52 2.065 697 K36119 72 57 4.179
653 K36403 60.6 38.1 4.796 698 K36318 72 62.6 2.733
654 K3646 61 47 3.266 699 K36262 73 21.5 25.75
655 K36458 61 49 2.851 700 K36263 73 25.5 10.105
656 K36320 61 54.3 1.669 701 K3677 73 34 9.013
657 K36219 61.1 50.7 2.511 702 PW965 73 70 0.933
658 K36315 61.2 55.3 1.485 703 PW127001 73.6 70.6 0.94
659 K36392 62 43.5 4.215 704 K36129 74 49 6.642
660 C6922 62.3 56.15 1.56 705 K36327 74 63 3.255
661 PW189063 62.6 60 0.693 706 K36221 74 66.8 2.19
662 K36317 63 60 0.797 707 CB066007 75 71 1.248
663 PWD0633 63.3 49 3.493 708 K36421 75.5 18.5 11.572
664 K36130 63.4 55 2.148 709 K36382 75.5 54.7 5.849
665 K36448 63.5 22 7.664 710 K36440 76 53 6.408
666 PWD0635 63.5 30 6.813 711 PW756 76 56 5.739
667 K36282 63.5 59.9 0.959 712 PW758 76 58 5.243
668 K3619 63.7 43 4.77 713 PW762 76 62 4.199
669 K3671 63.8 60.8 0.807 714 CC0760 76 65.7 3.118
670 K36381 64 40 5.391 715 K36371 76 70 1.892
671 K36214 64.6 54.1 2.692 716 FTA042 76 70 1.905
672 K36395 64.7 54 2.743 717 PW964 76 73 0.969
673 CR1344 65 41.3 5.864 718 K36248 76.1 58 5.242
674 K36352 65 60 1.35 719 K36281 76.2 72.6 1.157
675 K36216 66.1 36.9 6.496 720 PWD0765 76.5 63.8 3.874
676 FTA023 67 46 5.161 721 K36191 77 67.4 2.994
677 K36385 67 47 4.924 722 CB032 77 71 1.897
678 PW216007 67 49.3 4.476 723 LFM144 77 73 1.295
679 C7510 67 59.4 2.052 724 K36220 78 55.8 6.416
680 K36226 67.8 60.2 2101 725 K36313 78 68 3.153
681 FTD040 68 54 3.714 726 PW300018 79 50 8.137
682 FTD041 68.5 53 4.095 727 PW080096 79 73 1.983
683 K3688 69 50.5 4.775 728 PWD0800 80 40 10.44
684 CC0692 69.2 57.3 3.216 729 PW01061 80 63 5.287
685 K3693 69.4 63.7 1.639 730 K36370 80 76 1.348
NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M) NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M)
731 K36246 82.5 25 13.351 776 CC1000 100 84.9 5.964
732 K36261 83 44.3 10.641 777 K3675 100 90 4.104
733 PW216035 83 59 7.411 778 K3673 100 94 2.514
734 K36407 83 74 3.052 779 CC8632紋 100 94 2.436
735 K3640 83.5 36 12.26 780 K36351 100 96 1.693
736 K36389 84 50 9.84 781 C20034 101.6 89.6 4.901
737 CB066008 84.5 75.3 3.141 782 FLFP009 102 72 11.352
738 K36197 85 56 8.832 783 PWD1030 103 80 9.154
739 LFM186 85 76 3.186 784 PWD1050 105.7 93 5.496
740 FTA036 86 47 11.281 785 PW940 105.7 101.7 1.804
741 K3635 86 79.85 2.209 786 K3633 106 99.85 2.734
742 PW216006 86.6 59 8.74 787 K36185 106.8 39 21.351
743 CC0867 86.7 72.3 4.922 788 CB066001 108 95.5 5.434
744 K36466 86.8 47 11.502 789 LFA6485 110 107 1.623
745 K36390 86.9 53.7 10.082 790 K36347 112 90 9.598
746 CR1616 88 64.5 7.656 791 K36299 112 100 5.495
747 K36461 88.5 64.3 7.987 792 K36258 112.5 76.5 14.696
748 CR1617 88.5 79.5 3.23 793 K36303 113.2 36 24.878
749 CC0760 88.7 77.7 3.91 794 K36355 114 88 11.344
750 K3625 89 84 1.868 795 LF101 114 108 2.877
751 K36418 89.4 85 1.657 796 C20035 114.3 102.3 5.552
752 PWD0900 90 40 14.137 797 CC1143 114.3 103.2 5.158
753 K36399 90 55 10.961 798 PWD1170 117 101 7.585
754 FLFP011 90 63 8.984 799 K36247 119.5 36 28.044
755 FLFP010 90 71 6.652 800 K36295 120 115.8 2.139
756 PW287001 90.6 66.5 8.234 801 PWD1210 121 92.74 13.137
757 PW2097 90.6 78.6 4.416 802 K36340 123 100 11.078
758 PW135005 91 51.4 12.264 803 K36457 125 87.5 17.211
759 K3672 91 83 3.007 804 CC1250 125 111 7.058
760 PW988 91.5 77.5 5.145 805 PW989 125.7 111 7.567
761 FLFP008 92 57 11.342 806 CR2356 127 114.2 6.395
762 PW125092 92 73.8 6.562 807 K36296 127 100.5 13.021
763 K36396 93.45 87 2.514 808 KM0699 127 112.6 7.452
764 K36307 94 44.3 14.846 809 K36239 127.76 122.76 2.705
765 K36388 94 75 6.935 810 PWD1300 130 90 19.139
766 K36489 94 86 3.11 811 K36409 131.5 108.5 11.922
767 K3639 94.2 36 16.367 812 CB066003 135 130 2.831
768 PW216036 94.5 80 8.766 813 K36126 137 100 18.94
769 PW216381 94.5 87 2.997 814 K36357 140 136 2.384
770 K36285 95 25 18.143 815 K36134 140.5 48 37.66
771 K36304 95 34 16.996 816 K36138 141.25 128.3 7.539
772 CC0650 95 91 1.589 817 K36493 141.5 117.5 13.426
773 PW216382 98 70 10.231 818 PW010070A 150 139 6.913
774 PW287002 98 76.5 8.159 819 CA032159 150 144 4.051
775 K36427 98.3 74.7 8.818 820 K3611 151.5 137 9.035
NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M) NO ROUND TUBES O.D.(mm) I.D.(mm) WEIGHT(KG/M)
821 K36423 152 148 2.592
822 K36498 152.2 137 9.494
823 CR2342 152.4 124 16.769
824 CR2178紋 160 154 4.36
825 CR2773 160.3 144.7 10.164
826 K36359 165 151.5 9.228
827 K36406 168 162 4.277
828 CR2772 170 144 17.44
829 CR2341 177.8 149.4 19.851
830 CB027008 191.5 174 13.664
831 CC0197 197 182 12.145
832 K3630 200 193.2 5.775
833 K36401 203.5 187 13.916
※ABOVE IS OUR REGULAR STOCK AND OTHERS IS BY YOUR REQUEST.


Flat Bars Specification
NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M) NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M)
1 LF1059 6.3 3 0.053 46 WCA9837 17 12.5 0.582
2 FTA001 8 5 0.11 47 CR2825 17.1 3.6 0.167
3 LFC0001 9 4.5 0.112 48 K35231 18 4 0.198
4 WCA850225 9.8 8.2 0.22 49 C8708 18 5 0.244
5 KM8110 10 8 0.22 50 LF1679 18 9 0.443
6 FTA005 11.18 6.35 0.195 51 LF1682 18 10.5 0.521
7 K5115 11.5 2.5 0.079 52 K35230 18 13 0.644
8 WCA850099 11.9 11.5 0.375 53 WCA8557 18 15 0.739
9 K35273 12 3 0.099 54 K35114 18.4 4.2 0.213
10 CR0311 12 3 0.098 55 KH5003 19 3 0.157
11 LFC6307 12 3 0.095 56 LFG062 19 6.35 0.332
12 FTA006 12 11.5 0.378 57 LFG091 19 9.5 0.496
13 WCA850096 12.2 11.8 0.394 58 HL0002 19 11 0.572
14 WCA850183 12.5 2 0.069 59 LFG121 19 12.7 0.664
15 WCA8507 12.5 11 0.376 60 KG5402 19.04 9.54 0.5
16 CE79603 12.7 3 0.103 61 K3505D 19.05 2.8 0.147
17 K35199 12.7 6.35 0.222 62 K3505E 19.05 3 0.157
18 LFG061 12.7 6.35 0.222 63 CH9102 19.05 3.5 0.181
19 LF1687 12.7 10.16 0.351 64 UT0011 19.05 4.83 0.258
20 WCA9667 12.8 2.5 0.087 65 K3505F 19.05 5.8 0.304
21 K35184 12.8 4.7 0.165 66 CE79196 19.05 9.525 0.492
22 FTA007 12.95 7.6 0.27 67 K3720 19.05 9.55 0.5
23 KIA601 13 4.5 0.161 68 KG3773 19.1 9.55 0.502
24 KH5005 13 6 0.215 69 C8214 19.5 4 0.211
25 FTA002 13 8 0.285 70 WCA169008 20 2 0.109
26 FTA008 13.3 10.2 0.372 71 CB489 20 1.4 0.076
27 CK002 13.9 4.45 0.167 72 K35102 20 3.15 0.173
28 CB049009 14 12 0.455 73 WCA850137 20 7 0.383
29 WCA9693 14 13 0.498 74 WCA8556 20 8 0.438
30 K35181 14.75 9.8 0.398 75 WCA850183 20 10.5 0.575
31 K35266 15 2 0.083 76 CB049008 20 17 0.922
32 C627 15 5 0.203 77 WCA850125 20 18 0.986
33 K3502 15 6 0.248 78 C21*2.3 21 2.3 0.131
34 LF1682 15 10.5 0.435 79 UT0028 21 9 0.518
35 UT0027 15.2 8.6 0.358 80 C28627 21.4 1.9 0.11
36 K35214 15.5 4.4 0.188 81 LFM088 22 5 0.29
37 HL0001 15.5 11 0.467 82 FTA009 22 8 0.482
38 CE79197A 15.875 2.9 0.124 83 WCA850158 22 10.5 0.632
39 CR0501 15.9 12.7 0.549 84 WCA850098 22 12 0.723
40 C632 16 2.6 0.112 85 FTA040 22 14 0.844
41 C24001 16 3 0.13 86 K35272 22.2 6.35 0.388
42 C21001 16 5 0.217 87 C8760 23 5.5 0.343
43 LF1678 16 9.5 0.413 88 K35189 23 6 0.38
44 FTA016 16 12 0.528 89 WCA850126 23.2 8.6 0.546
45 K35215 16.5 5 0.227 90 WCA850159 23.4 17 1.089
NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M) NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M)
91 K35196 24 3.18 0.21 136 WCA8520 30 5 0.411
92 K35178 24 5 0.33 137 UT0013 30 6 0.469
93 HL0047 24 7.5 0.493 138 WCA850196 30 6 0.469
94 WCA850065 24.5 6.35 0.426 139 HL0006 30 7.5 0.616
95 HL0048 25 2.58 0.176 140 K35205 30 8 0.66
96 K3538 25 3 0.206 141 WCA850160 30 8 0.66
97 C4 25 3 0.203 142 HL0007 30 8.5 0.699
98 K3597 25 5 0.334 143 UT0026 30 8.5 0.699
99 WCA850341 25 8.5 0.582 144 LF9897 30 10 0.822
100 HL0003 25 9 0.616 145 WCA85489 30 12 0.986
101 KH5002 25 9.5 0.653 146 LF1009 30 12 0.979
102 CB049010 25 12.5 0.849 147 WCA9840 30 13.5 1.109
103 HL0004 25 19 1.301 148 LF9898 30 15 1.235
104 WCA850221 25 19 1.301 149 K3530A 30 20 1.65
105 WCA8512 25 20 1.37 150 WCA850220 30 22 1.808
106 UT0062 25 20 1.37 151 C31*4 31 4 0.337
107 HL0005 25 21 1.438 152 LF9916 31 7.8 0.666
108 KE79604 25.4 2.8 0.196 153 WCA850010 31 25 2.123
109 WCA8504 25.4 2.8 0.196 154 LF1677 31.2 8.1 0.706
110 CE79604 25.4 3 0.206 155 K35256 31.7 27 2.354
111 CA056023 25.4 4 0.276 156 WCA8503 31.75 1.2 0.104
112 K35194 25.4 3.18 0.222 157 WCA8505 31.75 2.8 0.243
113 CA056023 25.4 4 0.276 158 K35247 31.75 6.35 0.554
114 LFG063 25.4 6.35 0.444 159 HL0048 31.75 9.525 0.302
115 UT0033 25.4 9.5 0.65 160 LFG064 31.8 6.35 0.553
116 LFG092 25.4 9.5 0.65 161 UT0018 31.8 6.35 0.553
117 K35251 25.4 9.53 0.666 162 LFG093 31.8 9.5 0.831
118 UT0040 25.4 12.7 0.87 163 LFG123 31.8 12.7 1.111
119 LFG122 25.4 12.7 0.87 164 UT0036 31.8 12.7 1.111
120 K35245 25.4 12.7 0.887 165 LFG152 31.8 15.8 1.382
121 LFG151 25.4 15.8 1.109 166 UT0043 31.8 16 1.394
122 K35265 25.4 19 1.327 167 LFG192 31.8 19 1.662
123 LFG191 25.4 19 1.327 168 LFG222 31.8 22 1.924
124 LFG221 25.4 22 1.537 169 LFG250 31.8 25.4 2.225
125 WCA850027 25.5 6 0.419 170 C32*2.3 32 2.3 0.199
126 WCA850146 25.5 15 1.048 171 UT0016 32 6 0.526
127 WCA850134 25.9 3 0.212 172 WCA9649 32 10 0.876
128 WCA850153 26 10.5 0.748 173 LF1681 32 10.5 0.932
129 WCA850120 26 21 1.496 174 WCA850165 32 12 1.052
130 WCA9843 28 13.5 1.035 175 UT0038 32 12.7 1.1
131 WCA850024 28 18 1.381 176 WCA850289 32 12.7 1.1
132 WCA850051 29 9.5 0.754 177 FTA002 32 13 1.13
133 C30*3 30 3 0.244 178 WCA9830 32 13.5 1.183
134 K35201 30 4 0.33 179 FTA021 32 16 1.39
135 C6785 30 4.7 0.382 180 WCA850331 32 17 1.49
NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M) NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M)
181 FTA020 32 18 1.578 226 CE7961 38.1 3 0.31
182 CR1585 32.3 3 0.263 227 WCA850066 38.1 4.8 0.501
183 UT0057 33 21.5 1.944 228 LFG065 38.1 6.35 0.665
184 CL0110 33.4 4 0.363 229 UT0019 38.1 6.35 0.665
185 WCA850147 34 6 0.558 230 LFG094 38.1 9.5 0.995
186 HL0008 34 11.5 1.071 231 UT0030 38.1 9.5 0.995
187 WCA9839 34 13.5 1.257 232 LFG124 38.1 12.7 1.326
188 KMA801 34 16 1.496 233 UT0035 38.1 12.7 1.326
189 WCA850009 34 26 2.422 234 LFG153 38.1 15.8 1.655
190 FTA010 34 32.5 3.027 235 LFG193 38.1 19 1.991
191 WCA8502 35 1.5 0.143 236 LFG223 38.1 22 2.305
192 CR2835 35 3.25 0.309 237 WCA850088 38.1 22.86 2.386
193 WCA850203 35 4.2 0.402 238 LFG251 38.1 25.4 2.652
194 UT0012 35 5 0.479 239 K35158 38.1 31.75 3.327
195 UT0020 35 7 0.671 240 K35113 38.1 10 1.048
196 WCA8558 35 22 2.109 241 WCA850097 38.5 19.05 2.009
197 WCA9683 35 25 2.397 242 LF9917 38.8 9 0.966
198 K35190 35 26 2.503 243 KG5411 38.86 6.35 0.679
199 WCA850219 35 27 2.589 244 FTA003 39 4.05 0.433
200 HL0009 35.5 12 1.151 245 K35264 39 5 0.536
201 WCA8551 35.5 12 1.151 246 UT0048 39 17 1.816
202 CW0273 35.8 3.5 0.34 247 K3581 39.9 5.8 0.636
203 CR2574 36 4.3 0.421 248 UT0002 40 2 0.219
204 WCA850169 36 8 0.789 249 K35222 40 3 0.33
205 WCA9831 36 13.5 1.331 250 CMIH0440 40 4 0.435
206 FTXC019 36 15 1.461 251 K35200 40 5 0.55
207 FTA022 36 18 1.775 252 LF1061 40 5 0.55
208 UT0054 36 20.8 2.052 253 K35271 40 6 0.66
209 FTA011 36 28 2.762 254 UT0021 40 7 0.698
210 WCA850004 36 32 3.156 255 LFH013 40 8 0.87
211 C37*3 37 3 0.301 256 LF1679 40 10 1.117
212 HL0010 37 3.5 0.355 257 K35204 40 10 1.1
213 WCA850273 37 31 3.142 258 LF1683 40 12 1.336
214 C6876 37.6 1.8 0.183 259 WCA850275 40 12.95 1.419
215 CA017012 38 4 0.413 260 K35261 40 13.3 1.463
216 K35220 38 4.7 0.491 261 CB049003 40 14 1.521
217 WCA850340 38 6 0.624 262 CB049004 40 17 1.847
218 WCA850019 38 9 0.937 263 FHS-02 40 20 2.16
219 WCA8561 38 12.5 1.301 264 C4025 40 25 2.719
220 WCA8590 38 19.2 1.999 265 WCA9637 40 25 2.74
221 FTA011 38 25.4 2.644 266 WCA850072 40 30 3.288
222 WCA8511 38 30 3.123 267 K3531D 40 30 3.3
223 UT0076 38 32 3.332 268 WCA8587 40 38 4.164
224 WCA8502 38.1 1.2 0.125 269 LF9631 40.5 12.1 1.342
225 LFP001 38.1 2.2 0.235 270 WCA8560 41 12 1.348
NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M) NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M)
271 WCA8550 41 14.5 1.628 316 WCA850241 48 7.5 0.986
272 CB049001 41 25 2.787 317 LF1676 48 8.5 1.11
273 WCA850308 41 34 3.819 318 HL0013 48 8.7 1.144
274 HL0011 41.5 12.5 1.42 319 LF1693 48 18.5 2.415
275 UT0015 42 6 0.69 320 WCA850226 48 25 3.288
276 WCA850067 42 7 0.805 321 WCA8564 48 40 5.26
277 WCA850243 42 8 0.92 322 WCA850192 48 41 5.392
278 WCA850272 42 9 1.035 323 WCA850182 49 3 0.402
279 FTA019 42 30 3.452 324 LF1065 49 6.35 0.837
280 WCA850131 42.2 16.5 1.907 325 WCA850005 49 9 1.208
281 C21008F 42.25 16.2 1.828 326 WCA850063 49.4 29.4 3.979
282 FTA012 42.5 30.3 3.528 327 CMIH0450 50 4 0.543
283 UT0042 44 13 1.567 328 WCA850112 50 6 0.822
284 UT0051 44 19 2.29 329 K35185 50 7 0.963
285 UT0059 44 22 2.652 330 LF9556 50 8 1.1
286 UT0068 44 30 3.616 331 WCA850016 50 8 1.1
287 UT0077 44 32 3.858 332 K35226 50 10 1.375
288 WCA850318 44.3 28.6 3.471 333 CB049013 50 10 1.359
289 WCA850170 44.5 9 1.097 334 CB049002 50 12 1.63
290 HL0012 44.5 11.5 1.402 335 WCA850329 50 14.5 1.986
291 HL0050 44.5 16 1.93 336 WCA8585 50 16 2.192
292 FT100 44.5 19 2.29 337 WCA850269 50 17 2.329
293 HL0051 44.5 22.2 2.68 338 WCA8512 50 20 2.74
294 FTA012 44.5 25.4 3.06 339 WCA850348 50 21 2.877
295 HL0052 44.5 32 3.902 340 FTA018 50 25 3.425
296 WCA850339 45 1.5 0.184 341 K35203 50 30 4.125
297 FTA004 45 5 0.616 342 WCA850195 50 35 4.795
298 WCA850251 45 6 0.739 343 KAD1757 50 40 5.5
299 WCA850163 45 7 0.863 344 K35260 50.2 10 1.381
300 UT0022 45 7.5 0.924 345 K3574 50.5 6 0.833
301 CB049006 45 17 2.08 346 WCA850179 50.5 21 2.905
302 WCA850017 45 25 3.082 347 WCA8592 50.6 19.2 2.662
303 CB049048 45 38 4.651 348 KE79605 50.8 2.8 0.391
304 CR0810 45.6 2 0.248 349 K35238 50.8 6.35 0.887
305 WCA850189 46 8.5 1.071 350 LFG066 50.8 6.35 0.887
306 K35262 47 5 0.646 351 K35136 50.8 9.5 1.327
307 FTA032 47 10.5 1.352 352 LFG095 50.8 9.5 1.327
308 FTA031 47 12.5 1.609 353 UT0031 50.8 9.5 1.327
309 WCA850057 47 15 1.931 354 FTA009 50.8 9.6 1.336
310 WCA850236 47 38 4.893 355 K35243 50.8 12.7 1.774
311 KA26152 47.04 9.53 1.233 356 LFG125 50.8 12.7 1.75
312 WCA850031 48 2 0.263 357 WCA8541 50.8 12.7 1.75
313 UT0007 48 3.5 0.46 358 FT101 50.8 12.7 1.75
314 WCA850242 48 5 0.657 359 HL0053 50.8 15.8 2.199
315 WCA850399 48 7 0.92 360 LFG154 50.8 15.8 2.207
NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M) NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M)
361 K35123 50.8 15.88 2.218 406 HL0015 56 51 7.825
362 UT0045 50.8 16 2.613 407 LF1060 57 3 0.487
363 FT102 50.8 19 2.62 408 WCA850064 57 9.5 1.483
364 LFG194 50.8 19 2.62 409 HL0042 57 22 3.436
365 K35127 50.8 19.05 2.661 410 HL0055 57.1 16 2.5
366 LFG224 50.8 22 3.073 411 CR1163 57.2 3 0.466
367 K35244 50.8 22.2 3.101 412 HL0016 58 11.5 1.827
368 K35129 50.8 25.4 3.548 413 HL0199 58 27 4.29
369 FTA008 50.8 25.4 3.5 414 HL0120 58 30 4.768
370 LFG252 50.8 25.4 3.5 415 WCA850281 58 52 8.263
371 HL0053 50.8 25.4 3.5 416 LFH009 58.5 8 1.285
372 K35131 50.8 31.75 4.435 417 WCA850229 59 13 2.101
373 LFG311 50.8 31.8 4.442 418 UT0057 59 21 3.394
374 HL0054 50.8 32 4.41 419 UT0066 59 27 4.364
375 K35142 50.8 38.1 5.323 420 UT0067 59 30 4.849
376 LFG381 50.8 38.1 5.323 421 UT0074 59 36 5.819
377 FTA010 50.8 38.1 5.64 422 UT0085 59 50 8.083
378 K35269 51 5 0.701 423 K35164 59.5 19 3.109
379 WCA850086 51 28 3.912 424 WCA8531 60 2 0.328
380 HLFP017 51 29 4.008 425 WCA6775 60 3 0.493
381 FTA029 51 29 4.008 426 UT0006 60 3.5 0.575
382 LF1008 51 29 4.023 427 UT0008 60 4 0.657
383 HL0014 52 11.5 1.638 428 WCA850095 60 4.5 0.739
384 WCA8526 52 9.5 1.353 429 CA076155 60 4.5 0.757
385 K35236 53 3.05 0.445 430 CA076154 60 5.2 0.848
386 WCA850395 53 10 1.452 431 CA076142 60 5.5 0.897
387 WCA850263 53 22 3.195 432 CA076126 60 6 0.979
388 WCA850103 53 25 3.63 433 WCA8573 60 8.3 1.364
389 WCA850235 53 38 5.518 434 CA032109 60 8.5 1.305
390 WCA850104 53 40 5.808 435 KM8105 60 10 1.65
391 WCA850191 53 41 5.954 436 WCA850110 60 16 2.63
392 WCA8562 54 9.5 1.405 437 FTA013 60 20 3.288
393 WCA8525 54 11 1.627 438 WCA850355 60 38 6.247
394 WCA850338 54 38 5.622 439 WCA850033 60 40 6.576
395 KHB401 54.25 8.25 1.231 440 UT0004 61 2.76 0.461
396 LF1064 54.8 5.6 0.872 441 HL0017 61 22 3.978
397 WCA850129 55 2.9 0.437 442 WCA850054 61 30 5.014
398 K35118 55 6 0.908 443 K35103 62 20 3.41
399 WCA8596 55 15.5 2.335 444 WCA850120 62 21 3.567
400 WCA8594 55 50 7.535 445 UT0055 62 21 3.567
401 WCA850174 55 51 7.685 446 CR1771 62.1 15 2.534
402 K35193 56 3.18 0.49 447 WCA850167 62.5 8.15 1.395
403 K35229 56 9 1.386 448 WCA850266 62.7 45.5 7.816
404 WCA8595 56 32 4.91 449 K35225 63 8.95 1.551
405 UT0083 56 46 7.058 450 WCA850113 63 12.3 2.123
NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M) NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M)
451 CB049005 63 14 2.398 496 WCA850332 65 35 6.233
452 FTA014 63 57 9.839 497 FTA024 65 40 7.045
453 CE79610A 63.5 2.9 0.5 498 KG7701 65 61 10.904
454 LFG067 63.5 6.35 1.109 499 WCA850334 66 33 5.967
455 K35248 63.5 6.35 1.109 500 FTA015 66 36.5 6.6
456 LFG096 63.5 9.5 1.63 501 HL0049 66 38 6.872
457 FT103 63.5 9.5 1.653 502 WCA850335 66 41 7.414
458 K35246 63.5 9.53 1.664 503 WCA850184 66 53 9.584
459 FT104 63.5 12.7 2.19 504 WCA850267 66.5 49.5 9.019
460 LFG126 63.5 12.7 2.19 505 K3559 68 4 0.748
461 K35147 63.5 12.7 2.218 506 UT0009 68 4 0.748
462 LFG155 63.5 15.8 2.759 507 WCA850069 68 10 1.863
463 K35124 63.5 15.88 2.773 508 WCA850083 68 12 2.235
464 FT105 63.5 16 2.75 509 HL0056 68 17.5 3.261
465 LFG195 63.5 19 3.27 510 WCA850259 68 17.5 3.261
466 K35144 63.5 19.05 3.327 511 WCA8589 68 19 3.54
467 LFG225 63.5 22 3.842 512 WCA850230 68 35 6.521
468 K35177 63.5 22.2 3.877 513 WCA850200 68.5 6 1.126
469 K35151 63.5 25.4 4.435 514 LF1063 69.5 5.5 1.039
470 FTA007 63.5 25.4 4.419 515 K35180 70 2 0.385
471 LFG253 63.5 25.4 4.419 516 CRC2524 70 4.5 0.8568
472 WCA850270 63.5 25.4 4.37 517 C6874 70 4.7 0.894
473 K35159 63.5 31.75 5.544 518 WCA850304 70 20 3.836
474 LFG312 63.5 31.8 5.553 519 HL0018 70 20 3.836
475 FT106 63.5 32 5.51 520 WCA850213 70 27.5 5.274
476 WCA850188 63.5 38 6.54 521 HL0057 70 36 6.905
477 K35143 63.5 38.1 6.653 522 K35224 70 63.5 12.224
478 FTA013 63.5 38.1 6.54 523 WCA850215 71 19 3.696
479 LFG382 63.5 38.1 6.653 524 WCA850211 71 51 9.921
480 LFG441 63.5 44.5 7.771 525 WCA850222 71 55 10.699
481 LF1698 63.5 50.8 8.775 526 UT0010 72 4.7 0.927
482 UT0086 63.5 50.8 8.87 527 WCA8527 72 8 1.578
483 K35175 63.5 50.8 8.871 528 FTA016 72 12 2.367
484 K35270 64 5 0.88 529 FTA017 72 22 4.34
485 WCA850287 64 5 0.88 530 HL0046 72 39 7.694
486 WCA850210 64 8 1.402 531 WCA850030 72 42 8.285
487 WCA850330 64.5 3.2 0.565 532 WCA850053 73 3 0.601
488 C7513 64.5 3.3 0.578 533 CR2569 73 3.2 0.635
489 WCA850326 65 1.5 0.267 534 UT0058 73 22 4.4
490 K35219 65 3 0.536 535 WCA850218 74 3.2 0.648
491 CR2808 65 3 0.53 536 WCA850260 74 33 6.691
492 WCA8543 65 5.4 0.961 537 WCA850090 74.7 10.3 2.108
493 WCA850105 65 7 1.247 538 K35212 75 4.6 0.949
494 WCA8572 65 10 1.781 539 K35263 75 5 1.031
495 FTA025 65 33 5.811 540 WCA850062 75 9 1.849
NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M) NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M)
541 LF2035 75 11 2.269 586 C76.5*1.6 76.5 1.6 0.332
542 WCA850352 75 11 2.269 587 WCA850299 77 37.5 7.911
543 WCA850058 75 18 3.699 588 K35223 77.85 2.4 0.514
544 UT0053 75 20 4.11 589 K35202 78 2.4 0.515
545 WCA8579 75 21 4.315 590 CA076049 78 2.45 0.519
546 UT0065 75 26.5 5.445 591 CR0395 78 2.5 0.53
547 WCA850276 75 74 15.207 592 WCA8545 78 2.5 0.53
548 WCA850325 76 3.2 0.666 593 HL0043 78 23.5 5.022
549 WCA850052 76 4.1 0.853 594 HL0044 78 51.5 11.006
550 HL0019 76 4.8 0.999 595 LF1003 78.5 20 4.27
551 WCA850194 76 5 1.041 596 LF1007 78.5 26 5.552
552 WCA850293 76 6 1.249 597 LF1013 78.5 49 10.461
553 LFG068 76 6.35 1.327 598 LF1014 78.5 55 11.742
554 LFG097 76 9.5 1.986 599 C79*1.5 79 1.5 0.321
555 LFG127 76 12.7 2.654 600 C79*2.5 79 2.5 0.53
556 LFG156 76 15.8 3.302 601 C79*3 79 3 0.644
557 LFG196 76 19 3.971 602 HL0020 79 16.3 3.528
558 LFG226 76 22 4.598 603 WCA850214 79 18 3.896
559 LFG254 76 25.4 5.309 604 K3571 80 2.5 0.55
560 LFG313 76 31.8 6.646 605 LF9778 80 5 1.1
561 LFG383 76 38.1 7.963 606 K3598 80 8 1.76
562 UT0081 76 44.5 9.266 607 CB049049 80 8 1.74
563 LFG501 76 50.8 10.617 608 WCA850375 80 9.5 2.082
564 K35249 76.2 6.35 1.331 609 UT0041 80 13 2.849
565 K35137 76.2 9.5 1.991 610 CR1311 80 26 5.679
566 K35148 76.2 12.7 2.661 611 WCA8529 80 30 6.576
567 FT107 76.2 12.7 2.62 612 K35213 80 60 13.2
568 K35154 76.2 15.88 3.328 613 CA076024 82 13 2.899
569 FTA014 76.2 16 3.3 614 LFH001 83 6 1.367
570 K35145 76.2 19.05 3.992 615 WCA850358 83 20 4.548
571 FTA015 76.2 19.1 3.987 616 K3594 84.5 8 1.859
572 FT108 76.2 22.2 4.58 617 WCA850161 85 5 1.164
573 K35130 76.2 25.4 5.323 618 K35117 85 7 1.636
574 K35157 76.2 31.75 6.653 619 WCA850420 85 8 1.863
575 HL0058 76.2 32 6.61 620 HL0061 85 8.5 1.979
576 HL0059 76.2 35.1 7.328 621 WCA850144 85 10 2.329
577 LF1010 76.2 35.1 7.275 622 WCA850140 85 12 2.794
578 K35141 76.2 38.1 7.984 623 WCA850305 85 21 4.89
579 HL0060 76.2 38.1 7.87 624 WCA850091 85 28 6.521
580 HL0045 76.2 44.5 9.29 625 KH5013 85.5 6 1.411
581 LF1011 76.2 44.5 9.224 626 UT0073 86 35 8.247
582 LF1012 76.2 50.8 10.49 627 CA076048 87 2.45 0.579
583 UT0085 76.2 50.8 10.49 628 CR0402 87 2.5 0.591
584 K35168 76.2 50.8 10.645 629 WCA850040 87 2.5 0.591
585 WCA850323 76.4 3 0.628 630 UT0097 88 76 18.325
NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M) NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M)
631 K35138 88.9 9.5 2.323 676 WCA850337 93 33 8.409
632 K35149 88.9 12.7 3.105 677 HL0024 94 2 0.515
633 K35155 88.9 15.88 3.882 678 CRC2536 94 2.5 0.639
634 K35240 88.9 19.05 4.657 679 LF1015 94 63 16.108
635 K3595 88.9 25.4 6.21 680 CRC2537 95 2.2 0.566
636 K35227 88.9 31.75 7.762 681 CRC2523 95 2.5 0.646
637 LFG098 89 9.5 2.29 682 K35106 95 4 1.045
638 LFG128 89 12.7 3.1 683 FT3045 95 4 1.045
639 LFG157 89 15.8 3.867 684 WCA850049 95 6 1.561
640 LFG197 89 19 4.58 685 WCA850157 95 7 1.822
641 LFG227 89 22 5.385 686 WCA850156 95 8 2.082
642 LFG255 89 25.4 6.19 687 CA8514 95 9 2.343
643 K3514 89 27 6.608 688 HL0066 95 9.5 2.473
644 LFG314 89 31.8 7.67 689 WCA8577 95 9.5 2.473
645 HL0062 89 32 7.8 690 WCA850139 95 11 2.863
646 LFG384 89 38.1 9.325 691 HL0025 95 15 3.904
647 UT0077 89 38 9.266 692 FTA034 95.5 12 3.173
648 K35257 89 75 18.356 693 K35267 96 57 15.048
649 K35104 90 2.45 0.606 694 CT001A 96.5 3.4 0.892
650 HL0063 90 2.9 0.705 695 WCA8519 97 2.3 0.611
651 CR0351 90 2.9 0.705 696 HL0165 97 10.5 2.791
652 WCA850181 90 3 0.739 697 HL0166 97 14.5 3.854
653 UT0017 90 6 1.479 698 WCA8544 98 2.2 0.59
654 WCA850032 90 7 1.726 699 HL0026 98 15 4.028
655 HL0021 90 7.3 1.8 700 WCA850312 98.8 16.8 4.547
656 WCA850359 90 8 1.972 701 HL0070 99 29.5 8.002
657 WCA8528 90 8.5 2.096 702 WCA8559 99.8 33 9.023
658 WCA850346 90 10 2.466 703 WCA850198 100 1.8 0.493
659 WCA850141 90 12 2.959 704 HL0027 100 2 0.548
660 K35119 90 15 3.713 705 UT0005 100 3 0.822
661 WCA850278 90 19 4.685 706 WCA850029 100 5.5 1.507
662 FHS-01 90 40 9.864 707 WCA850290 100 6 1.632
663 LF1690 90.5 16 4.127 708 K3596 100 7 1.925
664 WCA850264 90.6 10.8 2.681 709 WCA850092 100 7 1.925
665 K35276 91.15 11.65 2.92 710 LF1655 100 8 2.131
666 HL0022 92 2 0.504 711 WCA850223 100 8.5 2.329
667 CR2344 92 2.2 0.55 712 K3536B 100 9.5 2.613
668 HL0064 92 2.2 0.55 713 K3536B 100 9.5 2.613
669 CR2343 92 2.5 0.625 714 CR1190 100 15 4.079
670 HL0065 92 2.5 0.625 715 LF1687 100 15 4.181
671 HL0023 92 3.2 0.806 716 CA076075 100 30.7 8.35
672 UT0090 92 52 13.108 717 K35121 100 54 14.85
673 KA26153 92.76 9.53 2.431 718 WCA850081 100 54 14.85
674 CR2786 93 3.2 0.822 719 CB027004 101 50.8 14.038
675 LF1001 93 20 5.115 720 LFG069 101.6 6.35 1.768
NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M) NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M)
721 K35250 101.6 6.35 1.774 766 CA076089 106 1.65 0.476
722 CR2914 101.6 6.35 1.755 767 CA076046 106 1.75 0.504
723 K35139 101.6 9.5 2.654 768 CA076061 106 2 0.576
724 LFG099 101.6 9.5 2.645 769 WCA850254 106 2 0.576
725 K35268 101.6 9.7 2.71 770 WCA850043 106 7 2.033
726 LFG129 101.6 12.7 3.5 771 WCA850265 106 10 2.904
727 FTA006 101.6 12.7 3.5 772 WCA850044 106 10.5 3.049
728 K35161 101.6 12.7 3.548 773 WCA850050 106 22.4 6.505
729 LFG158 101.6 15.8 4.444 774 WCA850114 107 12.7 3.723
730 K35125 101.6 15.88 4.437 775 K35209 107 28 8.239
731 LFG198 101.6 19 5.23 776 CA076030 107 28 8.149
732 K35146 101.6 19.05 5.323 777 WCA850228 110 1.6 0.482
733 UT0052 101.6 19.05 5.23 778 CA076131 110 1.8 0.538
734 LFG228 101.6 22 6.147 779 HL0028 110 2.5 0.753
735 K35153 101.6 25.4 7.097 780 HL0029 110 3 0.914
736 HL0067 101.6 25.4 6.99 781 WCA850240 110 4 1.205
737 LFG256 101.6 25.4 6.99 782 WCA850154 110 7 2.109
738 K35166 101.6 31.75 8.871 783 WCA850155 110 8 2.411
739 LFG315 101.6 31.8 8.885 784 K3558 110 8.05 2.435
740 K35169 101.6 38.1 10.645 785 K35228 110 28 8.47
741 LFG385 101.6 38.1 10.645 786 UT0082 110 45 13.563
742 LFG502 101.6 50.8 14.194 787 WCA850282 111 40 12.056
743 CB027004 101.6 50.8 14.038 788 LF9281 113 3.7 1.15
744 CA076042 102 2 0.554 789 LF1005 113 23 7.147
745 CR2345 102 2.2 0.601 790 UT0084 113 47 14.552
746 K35111 102 3 0.842 791 WCA850322 113 53 16.409
747 UT0096 102 63.5 17.746 792 WCA850079 114 3.1 0.968
748 UT0098 102 76 21.24 793 KI3502 114 10 3.135
749 WCA850249 102.6 28.6 8.04 794 WCA850321 114 30 9.371
750 CR2568 103 2.8 0.784 795 WCA850321 114 30.7 9.589
751 K35112 103 5 1.416 796 UT0088 114 51 15.93
752 WCA8506 104 8.5 2.422 797 CA076153 115 1.55 0.485
753 CB071019 105 3.1 0.885 798 CA076108 115 1.7 0.531
754 WCA850011 105 3.2 0.92 799 CA076059 115 2 0.625
755 WCA850292 105 6 1.726 800 WCA850233 115 2 0.625
756 WCA8547 105 9 2.589 801 HL0030 115 3.2 1.008
757 WCA850145 105 10 2.877 802 CA076060 115 4.9 1.533
758 WCA850357 105 12 3.452 803 WCA850256 115 4.9 1.533
759 K35120 105 19 5.486 804 WCA850234 115 5.4 1.701
760 UT0070 105 32 9.206 805 UT0034 115 10 3.151
761 UT0078 105 40 11.508 806 WCA850350 115 10.5 3.308
762 WCA8597 105 41 11.795 807 WCA850142 115 12 3.781
763 WCA850391 105 44 12.658 808 UT0039 115 12.7 4.002
764 UT0091 105 53 15.248 809 UT0046 115 16 5.042
765 UT0094 105 55 15.823 810 UT0063 115 25.4 8.004
NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M) NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M)
811 CRC2522 115.2 1.8 0.564 856 WCA850080 125 5 1.712
812 WCA850212 116 14 4.449 857 WCA8599 125 7.5 2.568
813 WCA850151 117 22 7.052 858 WCA8552 125 10 3.425
814 WCA850199 118 2 0.637 859 WCA850089 125 17 5.822
815 WCA850316 119 8.5 2.771 860 UT0099 128 80 28.057
816 CA076156 120 1.8 0.588 861 CR2545 126 3 1.045
817 CA076157 120 2 0.653 862 WCA850313 126 16.8 5.801
818 UT0001 120 2 0.653 863 WCA850055 127 4 1.392
819 WCA850231 120 2.2 0.723 864 HL0068 127 4.8 1.67
820 CRC2534 120 2.2 0.718 765 K35140 127 9.5 3.318
821 UT0003 120 2.5 0.822 866 WCA850376 127 10 3.479
822 CR2545 120 3 0.979 867 K35174 127 12.7 4.435
823 K35162 120 4.1 1.353 868 HLFP090 127 12.7 4.435
824 CA076032 120 4.9 1.599 869 K35156 127 15.88 5.546
825 WCA850255 120 4.9 1.599 870 K35167 127 19.05 6.653
826 WCA850093 120 5.8 1.907 871 UT0061 127 22 7.684
827 WCA850002 120 7 2.301 872 K35188 127 22 7.684
828 WCA850356 120 8 2.63 873 K35172 127 25.4 8.871
829 WCA850349 120 10 3.288 874 K35170 127 31.75 11.089
830 WCA850351 120 10.5 3.452 875 UT0075 127 32 11.135
831 WCA850143 120 12 3.945 876 UT0075 127 38 13.223
832 K35163 120 12.1 3.993 877 K35171 127 38.1 13.306
833 WCA850354 120 12.7 4.175 878 CB027003 127 38.1 13.161
834 WCA850149 120 17 5.589 879 UT0087 127 50.8 17.48
835 WCA850124 120 22 7.233 880 UT0095 127 57.2 19.904
836 CA076040 120 28.1 9.171 881 WCA850298 127 64 22.27
837 CA076054 120 30 9.79 882 K35277 128.65 8.9 3.149
838 WCA850295 120 30 9.79 883 CRC2521 130 1.8 0.636
839 WCA850400 120 50 16.44 884 K3588 130 5 1.788
840 K35110 120 52 17.16 885 CRC2520 130 5 1.768
841 UT0100 121 81 26.854 886 K35116 130 2 0.715
842 K35275 121.5 8.5 2.84 887 K3569 130 3 1.073
843 UT0024 122 8.2 2.741 888 WCA850039 130 3.5 1.246
844 LF1680 122 10 3.333 889 UT0023 130 8 2.849
845 WCA850068 122.8 15 5.047 890 WCA850320 130 30.5 10.782
846 K3573 123 3 1.015 891 CA076066 130 30.5 10.782
847 WCA850048 123 3 1.015 892 UT0071 130 32 11.398
848 WCA850381 123 14.5 4.886 893 WCA850075 130 32.5 11.576
849 CA076137 125 1.7 0.578 894 UT0079 130 40 14.248
850 CA076044 125 1.75 0.595 895 K35192 130 41 14.658
851 CA076045 125 1.95 0.663 896 K35197 130 45 16.088
852 WCA850253 125 2 0.685 897 K35197 130 45 16.088
853 K35105 125 4 1.375 898 UT0092 130 53 18.878
854 FT110 125 4 1.375 899 LF9280 131.5 4.1 1.482
855 CDT65173 125 4.5 1.601 900 CA076109 132 1.7 0.61
NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M) NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M)
901 HFP001 133 15 5.466 946 WCA850279 148 27 10.949
902 WCA850244 133.4 39.62 14.481 947 WCA850245 149.1 22.2 9.069
903 K3578 134 33 12.161 948 C6813 150 4.7 1.917
904 WCA8518 135 2.2 0.813 949 HL0034 150 5.5 2.261
905 CR2779 135 3 1.101 950 KAD107 150 10 4.125
906 WCA850037 135 5.2 1.923 951 WCA850343 150 13 5.343
907 WCA850401 135 8 2.927 952 KAD1572 150 15 6.188
908 WCA850342 135 12 4.438 923 WCA850344 150 16 6.576
909 LF1685 135 12 4.406 954 LF1689 150 16 6.576
910 WCA850377 135 15 5.548 955 LF1000 150 19 7.752
911 WCA850378 135 16 5.918 956 UT0050 150 19 7.752
912 LF1691 135 16.5 6.057 957 KAD1811 150 20 8.25
913 LFG386 135 38.1 14.108 958 WCA8593 150 20 8.22
914 WCA850307 136 9.2 3.428 959 WCA850123 150 22 9.042
915 LF1006 137 25.5 9.501 960 WCA8508 150 32 13.152
916 K3592 138 4.6 1.746 961 WCA850122 150 51 20.961
917 WCA8515 138 7 2.646 962 CR2143 151 6.4 2.628
918 LF1686 138 12.5 4.744 963 WCA850061 151 7.5 3.103
919 K3517 138 13 4.934 964 WCA850059 151 10.5 4.344
920 LF1004 139.5 22.5 8.538 965 K35207 151 13 5.398
921 WCA850041 140 3 1.151 966 CB049034 151 13 5.339
922 K3582 140 3.25 1.251 967 WCA850283 151 14 5.792
923 CA066035 140 3.3 1.256 968 WCA850311 151 22.8 9.433
924 CA066024 140 3.8 1.446 969 WCA850390 151 38 15.722
925 HL0031 140 4 1.534 970 WCA850286 152 4 1.665
926 WCA850353 140 13 4.986 971 WCA8571 152 6 2.498
927 HL0032 140 15 5.754 972 UT0064 152 25.4 10.578
928 WCA850317 141 38 14.68 973 UT0074 152 32 13.327
929 CB048009 142 33 12.744 974 UT0076 152 38 15.826
930 WCA850280 143 24 9.403 975 UT0089 152 51 21.24
931 WCA850173 143.5 12.7 4.993 976 KM7314 152 52 21.736
932 K35101 144 4 1.584 977 WCA850257 152.2 25.4 10.592
933 WCA850042 145 2.5 0.993 978 K3589 152.2 25.4 10.645
934 CR2381 145 2.6 1.025 979 K3590 152.4 5 2.096
935 WCA850025 145 3 1.192 980 CB051004 152.4 15.8 6.58
936 WCA850047 145 3.7 1.47 981 CR2295 153 25 10.403
937 WCA850046 145 4 1.589 982 WCA8532 155 1.8 0.764
938 WCA8535 145 8.5 3.377 983 WCA8510 155 10 4.247
939 WCA850361 145 14.5 5.76 984 WCA850360 155 14.5 6.158
940 WCA850232 145 20 7.946 985 WCA850333 155 21 8.918
941 WCA850328 145 90 35.757 986 UT0073 155 32 13.59
942 WCA850085 146 4.6 1.84 987 FTA039 155 33 14.015
943 WCA850374 147 20 8.055 988 WCA850336 155 33 14.015
944 UT0074 147 32 12.889 989 UT0080 155 40 16.988
945 WCA850303 147.1 6 2.418 990 UT0093 155 53 22.509
NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M) NO FLAT BARS WIDTH(mm) THICKNESS
(mm)
WEIGHT(KG/M)
1081 0.258 199.25 3.2 1.753 1126 K3565 268 10 7.37
1082 K35218 200 7 3.85 1127 CR2452 270 3 2.203
1083 WCA8554 200 10 5.48 1128 WCA850094 270 21.5 15.905
1084 KAD1737 200 15 8.25 1129 WCA8555 280 10 7.672
1085 CB051003 200 15.8 8.635 1130 WCA850018 282 3 2.318
1096 WCA8530 200 16 8.67 1131 WCA850216 310 6 5.096
1087 KAD1738 200 20 11 1132
1088 K35258 200 23 12.65 1133
1089 LF1692 203 18 9.939 1134
1090 CR2294 204 13 7.213 1135
1091 CR0336 206 4 2.236 1136
1092 WCA850164 206 26 14.675 1137
1093 WCA8567 207 3.3 1.871 1138
1094 K3564 209 3.2 1.839 1139
1095 WCA850012 209 3.2 1.839 1140
1096 WCA8563 210 7.5 5.466 1141
1097 HL0041 210 9.5 5.466 1142
1098 CB061010 214 19.5 11.348 1143
1099 WCA850345 215 8 4.712 1144
1100 WCA850121 220 5 3.014 1145
1101 WCA850023 220 7.5 4.521 1146
1102 CR1515 220 10 5.983 1147
1103 K35115 220 10 6.05 1148
1104 WCA850389 223 16 9.776 1149
1105 WCA850133 225 4 2.466 1150
1106 WCA850178 227 4.5 2.798 1151
1107 CR2405 228.6 8.6 5.347 1152
1108 WCA850190 230 3 1.891 1153
1109 CR2378 235 3.2 2.045 1154
1110 WCA850309 235 8 5.095 1155
1111 WCA850082 240 5.8 3.814 1156
1112 CR1161 240 6 3.916 1157
1113 WCA8538 240 6 3.916 1158
1114 WCA850227 240.7 14 9.233 1159
1115 CR2843 241.75 8.3 4.828 1160
1116 WCA850107 242 2.8 1.856 1161
1117 K35183 242 10 6.655 1162
1118 WCA850224 243 8 5.326 1163
1119 WCA850302 244 8.3 5.549 1164
1120 WCA850038 245 3 2.014 1165
1121 K35179 250 6 4.125 1166
1122 WCA850074 260 20 14.248 1167
1123 CR2662 262 8 5.701 1168
1124 WCA8549 263 3 2.168 1169
1125 WCA850201 265 5 3.63 1170
※ABOVE IS OUR REGULAR STOCK AND OTHERS IS BY YOUR REQUEST.


Square Bars Specification
NO SQURE BARS SPECIFICATION WEIGHT(KG/M) REMARK NO SQURE BARS SPECIFICATION WEIGHT(KG/M) REMARK
1 FTB001 4.4 0.053 Skin Pass Drawing 44 FTB013 44 5.304
2 LF9140 5 0.068   45 K35255 44.4 5.421
3 FTB002 5 0.068 Skin Pass Drawing 46 LFF012 44.5 5.446
4 FTB003 5.1 0.071   47 K35191 45 5.569
5 FTB007 6.35 0.11   48 LFF013 50.8 7.097
6 LFF001 6.35 0.111   49 LFF014 54 8.019
7 FTB008 7 0.134   50 LFF015 57 8.935
8 FTB014 7.3 0.146   51 K35134 57.15 8.982
9 FTB015 8 0.175 Skin Pass Drawing 52 LFF016 60.3 9.999
10 FTB009 8.3 0.188   53 UT0117 63.5 11.089 R2
11 LFF002 9.5 0.248   54 LFF017 63.5 11.089
12 KI8601 10 0.275   55 UT0116 71 13.66
13 LF9030 10 0.272   56 UT0115 72 14.204 R1
14 FTB016 10.1 0.279 Skin Pass Drawing 57 UT0114 75.2 15.418 R7.5
15 FTB017 10.3 0.291 Skin Pass Drawing 58 LFF018 76 15.884
16 FTB017 10.5 0.302   59 UT0113 76.2 15.96
17 FTB004 11 0.331   60 UT0112 80 17.34
18 FTB018 12 0.394 Skin Pass Drawing 61 UT0111 80.2 17.623
19 LF9030A 12 0.392   62 UT0110 82 18.423
20 FTB019 12.6 0.435 Skin Pass Drawing 63 UT0109 90 21.95 R1
21 LFF003 12.7 0.444   64 K3562 92.2 23.377
22 FTB010 13.3 0.484   65 UT0108 95 24.728
23 FTB005 14 0.537   66 UT0107 96 25.252 R1
24 KG4205 14.5 0.578   67 UT0106 101.6 27.97
25 LFC008 15 0.612   68 UT0105 112 34.37
26 K35241 15.8 0.687   69 UT0104 114.3 35.796 R2
27 LFF004 15.8 0.687   70 UT0103 116 35.84 R2
28 LFF005 19 0.997   71 UT0102 127 43.71 R1
29 FTB020 20.5 1.151 Skin Pass Drawing 72 UT0101 145 56.74 R8
30 FTB006 21 1.208   73
31 LFF006 22 1.331   74
32 LFC009 23 1.447   75
33 LFF007 25.4 1.774   76
34 LFF008 28.5 2.233   77
35 LFC010 30 2.448   78
36 FTB021 31.75 2.762 Skin Pass Drawing 79
37 LFF009 31.8 2.78   80
38 FTB011 32.4 2.876   81
39 FTB012 32.5 2.894   82
40 LFF010 35 3.369   83
41 LFF011 38.1 3.992   84
42 K3532 42 4.851   85
43 LFC012 44 5.458   86
※ABOVE IS OUR REGULAR STOCK AND OTHERS IS BY YOUR REQUEST.


Square Tubes Specification
NO SQUARE TUBES SPECIFICATION THICKNESS
(mm)
WEIGHT
(KG/M)
REMARK NO SQUARE TUBES SPECIFICATION THICKNESS
(mm)
WEIGHT
(KG/M)
REMARK
1 CT0412 10 1.3 0.123   44 CMIH344 40 1.1 0.472
2 CG031 11.2 1.15 0.125   45 CBUC094 40 1.3 0.547
3 C8003 12.7 1.25 0.155   46 C995 40 1.5 0.63
4 K3016 14.9 1.1 0.167   47 JM164 44 1 0.468
5 K3027 16 1.75 0.274   48 CW511 44.5 1.2 0.564
6 KL0868 19 1 0.198   49 LF9165 45 2.2 0.996
7 K3003A 19.05 1.2 0.236   50 K3010 45 2.5 1.169
8 C998 19.1 1 0.19   51 CMIH355 50 1.1 0.585
9 J501 19.3 1.15 0.179   52 KRL002 50.8 1 0.548
10 CMIH322 20 1.05 0.216   53 HL5003 50.8 1.5 0.835
11 JHL79 21 0.7 0.155   54 C999 50.8 1.6 0.856
12 JM127 21 2 0.413   55 K3011B 50.8 2 1.074
13 K3028 22.23 2 0.445   56 LF9164 57 3.1 1.837
14 JGT1241 25 0.9 0.236   57 J36432 63.5 1.78 1.198
15 K3017 25 1 0.264   58 JG110 63.5 2 1.328
16 CMIH32C 25 1.05 0.273   59 CA05802 65 2.5 1.7
17 K3029 25 1.2 0.314   60 CL306 75.8 2.2 1.752
18 HL5005 25.4 0.95 0.264   61 JVH0287 76.2 2.03 1.641
19 K3005A 25.4 1.1 0.294   62 K3012 80 1.5 1.295
20 C997 25.4 1.25 0.33   63 HL5001 80 1.55 1.359
21 LF4603 25.4 1.2 0.295   64 C9181 80 1.6 0.19
22 K3021 25.4 1.3 0.345   65 C992 80 1.88 1.6
23 K3021 25.4 1.5 0.394   66 CB186 86.7 1.7 1.563
24 K3005C 25.4 1.6 0.419   67 LF4601 101.6 2.1 2.66
25 K3026 25.4 1.8 0.467   68 K3013 101.6 2.2 2.405
26 CR0407 27 1.1 0.31   69 CA01029 101.8 3 3.224
27 CT0412 27.2 1.5 0.404
28 CMIH333 30 1.1 0.353
29 CA05803 30 2 0.609
30 K3006 30 3 0.891
31 HL5004 31 1.5 0.509
32 C996 31.7 1.52 0.42
33 JGT1371 31.8 3 0.912
34 KH6802 32 2 0.66
35 LF9551 33 2.8 1.46
36 KMA302 35 2 0.726
37 KL0866 35.2 1 0.376
38 KL0867 37.7 1 0.404
39 LF9166 38 2.1 0.795
40 K3008 38.1 1.2 0.487
41 HL5002 38.1 2 0.835
42 JM19 38.8 6.6 2.312
43 KH4108 39 3 1.188
※ABOVE IS OUR REGULAR STOCK AND OTHERS IS BY YOUR REQUEST.


Rectangular Tubes Specification
NO RECTANGULAR TUBES SPECIFICATION THICKNESS
(mm)
WEIGHT
(KG/M)
NO RECTANGULAR TUBES SPECIFICATION THICKNESS
(mm)
WEIGHT
(KG/M)
1 JM7658 14*12 3.2/2.2 0.303 44 C994 38.1*25.4 1.37 0.45
2 JGT1172 14.5*11.3 0.88 0.106 45 K3165 38.1*25.4 4 1.221
3 JT0141 18*17 1.2 0.213 46 CT0242 40*15 1 0.288
4 HL5006 19*12.7 0.65 0.113 47 HL5013 40*15 1.2 0.361
5 JGT1163 19.1*15.9 1.24 0.208 48 HL5014 40*15 1.4 0.422
6 K3172 20*10 1 0.154 49 CR0346C 40*15 1.6 0.45
7 K3155 20*10 1.1 0.168 50 JM135 40*15 2 0.603
8 JHV01 20.1*15.1 1.2 0.209 51 CR034B 40*19 1.4 0.428
9 HL5007 20.3*10 0.8 0.133 52 CR0346 40*19 1.8 0.542
10 K3171 20.4*5.8 1 0.133 53 CMIH324 40*20 1.1 0.353
11 J915C 21*13 0.7 0.124 54 HL5015 40*20 1.2 0.394
12 KI5202 22*15 2 0.363 55 HL5016 40*20 1.45 0.476
13 LFC450 24*15 2 0.38 56 CBUC024 40*20 1.5 0.465
14 CL060 24.5*17.5 1.1 0.223 57 HL5017 40*20 1.8 0.591
15 KM9061 25.25*15.2 1.55 0.318 58 CR0559 40*20 4 1.125
16 K3131 25.4*12.7 1.1 0.217 59 CW0126 40*30 1 0.369
17 JGT1123 25.4*22.2 1.24 0.295 60 K3166 40*35 1.5 0.594
18 C982 28*15 1.8 0.31 61 K3154 40.4*31.8 2 0.768
19 K3161 28*16 2 0.44 62 C981 41.3*25.4 1.85 0.601
20 K3164 28.8*16.1 1.1 0.258 63 C59001 41.3*25.4 2.4 0.78
21 CR0476B 29.6*18.5 2 0.477 64 JM134 43.5*40.6 1.45 0.663
22 LF9126 30*12 1.2 0.258 65 CRC758 45*25 1.4 0.464
23 HL5008 30*15 1.2 0.296 66 CD772 45*32 1.4 0.517
24 JG64 30*15 2 0.554 67 CW0122 46*35 1.5 0.757
25 HL5009 30*15 2.4 0.592 68 HL5018 50*16 1.3 0.47
26 CR0476 30*18.6 0.8 0.199 69 HL5019 50*16 2.4 0.868
27 K3150 30*20 1.25 0.327 70 LF9383 50*20 2.5 0.884
28 K3163 30*20 1.5 0.388 71 HL5020 50*25 1.5 0.616
29 HL5009 32*15 1.2 0.309 72 HL5021 50*25 1.7 0.698
30 HL5010 32*15 2.4 0.618 73 HL5022 50*25 1.74 0.715
31 CR0476 30*18.6 0.8 0.196 74 CR1198 50*25 1.8 0.636
32 JM136 30*26 0.8 0.229 75 HL5023 50*25 2 0.822
33 C6912 31.7*12.6 2 0.438 76 HL5024 50*25 2.13 0.875
34 JGT1124 31.8*28.6 1.24 0.381 77 CR0455 50*25 2.5 0.83
35 CR1554 35*16 1.3 0.364 78 KG3702 50*25.4 1.25 0.501
36 CR0495 35*16 2.5 0.477 79 CW0121 50*30 1.8 0.743
37 CR0427 35*20 1.8 0.503 80 CD752 50*37.8 1.8 0.742
38 KM0911 35*25.4 1.2 0.383 81 C168 50*40 1.5 0.71
39 HL5011 37.7*25 1 0.343 82 K3155 50.8*15.88 1.6 0.559
40 K3162 38*16 2 0.55 83 KE79160 50.8*25.4 0.9 0.368
41 HL5012 38*20 2.2 0.699 84 HL5025 50.8*25.4 1 0.417
42 KE82406 38.1*25.4 0.8 0.272 85 LF4607 50.8*25.4 1.2 0.46
43 K3137A 38.1*25.4 1.25 0.419 86 C991 50.8*25.4 1.4 0.55
NO RECTANGULAR TUBES SPECIFICATION THICKNESS
(mm)
WEIGHT
(KG/M)
NO RECTANGULAR TUBES SPECIFICATION THICKNESS
(mm)
WEIGHT
(KG/M)
87 LF4607A 50.8*25.4 2.5 0.979 130 K1003 101.6*44.5 1.5 1.181
88 K3141 50.8*38.1 1.25 0.594 131 C2033 101.6*44.5 1.66 1.288
89 J9855 51.5*31 2 0.85 132 C203 101.6*44.5 1.86 1.395
90 K3152 55.7*44.5 2 1.067 133 K3143B 101.6*44.5 2.1 1.639
91 LFC339 60*25 2 0.878 134 LFA003 101.6*44.5 2.5 1.932
92 CR2120 60*30 1.5 0.71 135 K1003D 101.6*44.6 3.1 2.387
93 K3146 60*30 2.5 1.169 136 LF4608 101.6*80 1.6 1.667
94 CA05801 60*40 1.6 0.843 137 LF4608A 101.6*80 1.8 1.723
95 LF9083 60*40 4 1.5 138 CR1088 110*38 6.5 4.769
96 K3167 63*20 2 0.869 139 LF9043 118*36 2 1.63
97 LF9555 72*30 8&11 4.84 140 K3168 120*40 1.5 1.295
98 K3169 72*42 4 2.332 141 CW059 120*60 3 3.547
99 CD008 75*45 3 1.866 142 C9165 120.7*50.8 5 4.392
100 KE79161 76.2*25.4 1 0.548 143 K3170 150*50 3 3.201
101 K3139 76.2*25.4 1.2 0.655 144 K3145 152.4*76.2 2.4 2.954
102 C7203 76.2*25.4 1.25 0.676 145 CR1191 120*75 10 9.52
103 K3142A 76.2*25.4 1.5 0.971 146 LFE52 130*70 2.5 2.73
104 C9141 76.2*38.1 3 1.767 147 LF9396 150*60 4 4.66
105 KE83009 76.2*44.5 1 0.653 148 C294A 150*68 3 3.46
106 HL5026 76.6*44.5 1.4 0.929 149 CR1474 160*70 2.5 3.06
107 C234 76.2*44.5 1.7 1.084 150 LF9384 180*80 5 7.489
108 C59027 76.2*44.5 3 1.871 151 CR2520 200*60 2.5 3.468
109 C8633 76.2*50.8 3.2 2.099 152 CR2519 200*100 3 4.798
110 JM40A 80*30 1.5 0.872
111 CMIH348 80*40 1.1 0.712
112 CBUC948 80*40 1.6 1.016
113 K3148 80*40 1.9 1.214
114 HL5027 80*45 1.25 0.856
115 LF4609 80*45 1.4 1.03
116 CR1059 80*45 3 3.46
117 JG104 90*18 2 1.183
118 CMIH221 100*20 1.1 0.712
119 JG103 100*30 2 1.137
120 CMIH341 100*40 1.15 0.869
121 KM2221 100*50 1.4 1.133
122 CW0120 100*50 1.5 1.432
123 K3159 100*50 2.5 1.994
124 LF9037 100*50 2.8 2.4
125 LFM078 100*60 2 1.716
126 CB348 100*80 1.5 1.374
127 JM40 101.5*30 1.5 1.048
128 K3140 101.6*25.4 1.3/1.4 0.944
129 K3143 101.6*44.5 1.3 1.026
※ABOVE IS OUR REGULAR STOCK AND OTHERS IS BY YOUR REQUEST.


Hexagonal Bars Specification
NO HEXAGONAL BARS SPECIFICATION LENGTH(mm) REMARK NO HEXAGONAL BARS SPECIFICATION LENGTH(mm) REMARK
1 FTC001 3.175 3010 Skin Pass Drawing 44 FTC044 11.9 3010
2 FTC002 3.24 3010 Skin Pass Drawing 45 FTC045 11.98 3010 Skin Pass Drawing
3 FTC003 4 3010 Skin Pass Drawing 46 F5510 12 3010
4 FTC004 4.5 3010 Skin Pass Drawing 47 FTC046 12.5 3010
5 FTC005 4.75 3010 Skin Pass Drawing 48 FTC047 12.7 3010 Skin Pass Drawing
6 FTC006 5 3010   49 FTC048 13 3010
7 FTC007 5.2 3010   50 FTC049 13.2 3010 Skin Pass Drawing
8 FTC008 5.43 3010 Skin Pass Drawing 51 FTC050 13.3 3010
9 FTC009 5.45 3010 Skin Pass Drawing 52 FTC051 13.6 3010
10 FTC010 5.5 3010   53 FTC052 14 3010
11 FTC011 5.7 3010 Skin Pass Drawing 54 FTC053 14.2 3010
12 FTC012 6 3010 Skin Pass Drawing 55 FTC054 14.3 3010
13 FTC013 6.1 3010   56 FTC055 14.5 3010 Skin Pass Drawing
14 FTC014 6.2 3010   57 FTC056 15 3010 Skin Pass Drawing
15 FTC015   3010   58 FTC057 15.2 3010
16 FTC016 6.3 3010   59 FTC058 15.5 3010
17 FTC017 6.35 3010 Skin Pass Drawing 60 FTC059 15.7 3010
18 FTC018 6.4 3010   61 FTC060 15.87 3010 Skin Pass Drawing
19 FTC019 6.5 3010   62 F5515 16 3010
20 FTC020 6.6 3010   63 FTC061 16.3 3010
21 FTC021 6.9 3010   64 FTC062 16.5 3010
22 FTC022 7 3010   65 FTC063 16.6 3010
23 FTC023 7.5 3010   66 FTC064 16.8 3010
24 FTC024 7.7 3010   67 FTC065 17 3010
25 FTC025 7.8 3010 Skin Pass Drawing 68 FTC066 17.5 3010 Skin Pass Drawing
26 FTC026 7.93 3010 Skin Pass Drawing 69 FTC067 18 3010
27 FTC027 8 3010 Skin Pass Drawing 70 FTC068 18.2 3010
28 FTC028 8.2 3010   71 FTC069 18.5 3010
29 FTC029 8.5 3010   72 FTC070 18.95 3010 Skin Pass Drawing
30 FTC030 9 3010   73 FTC071 19 3010
31 FTC031 9.1 3010   74 FTC072 19.05 3010 Skin Pass Drawing
32 FTC032 9.2 3010   75 FTC073 19.1 3010
33 FTC033 9.5 3010   76 FTC074 19.2 3010
34 FTC034 9.6 3010 Skin Pass Drawing 77 F5520 19.3 3010
35 FTC035 10 3010 Skin Pass Drawing 78 FTC075 19.5 3010
36 FTC036 10.3 3010   79 FTC076 20 3010
37 FTC037 10.5 3010   80 FTC077 20.2 3010
38 FTC038 10.7 3010   81 FTC078 20.5 3010
39 FTC039 10.8 3010   82 FTC079 21 3010
40 FTC040 11 3010 Skin Pass Drawing 83 FTC080 21.2 3010
41 FTC041 11.12 3010 Skin Pass Drawing 84 FTC081 21.4 3010
42 FTC042 11.4 3010   85 FTC082 22 3010 Skin Pass Drawing
43 FTC043 11.8 3010   86 FTC083 22.12 3010 Skin Pass Drawing
NO HEXAGONAL BARS SPECIFICATION LENGTH(mm) REMARK NO HEXAGONAL BARS SPECIFICATION LENGTH(mm) REMARK
87 FTC084 22.2 3010
88 FTC085 22.35 3010
89 F5525 22.4 3010
90 FTC086 22.5 3010
91 FTC087 22.8 3010
92 FTC088 23 3010
93 FTC089 23.3 3010
94 FTC090 23.5 3010
95 FTC091 24 3010 Skin Pass Drawing
96 FTC092 24.5 3010
97 FTC093 24.6 3010
98 FTC094 24.8 3010
99 FTC095 25 3010
100 FTC096 25.4 3010
101 FTC097 26 3010
102 F5530 26.15 3010
103 FTC098 26.2 3010
104 FTC099 27 3010
105 FTC100 28 3010
106 FTC101 28.5 3010
107 FTC102 28.6 3010
108 F5535 30 3010
109 FTC103 31 3010
110 FTC104 31.4 3010
111 FTC105 31.7 3010
112 FTC106 31.8 3010
113 FTC107 32 3010
114 F5540 33.3 3010
115 FTC108 35 3010
116 FTC109 38.1 3010
117 F5545 41.5 3010
118 F5550 44.5 3010
119 F5555 50.8 3010
※ABOVE IS OUR REGULAR STOCK AND OTHERS IS BY YOUR REQUEST.


Taipei Office Tel:+886-2-27183134 Fax:+886-2-27189443 E-mail:taipei@fapolu.com.tw
Taichung Factory & Warehouse Tel:+886-4-22584931 Fax:+886-4-22588743 E-mail:taichung@fapolu.com.tw
Tainan Factory & Warehouse Tel:+886-6-7263666 Fax:+886-2-7263888 E-mail:tainan@fapolu.com.tw
